RL78/F13, F14 CHAPTER 15 SERIAL ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 999

Dec 10, 2015

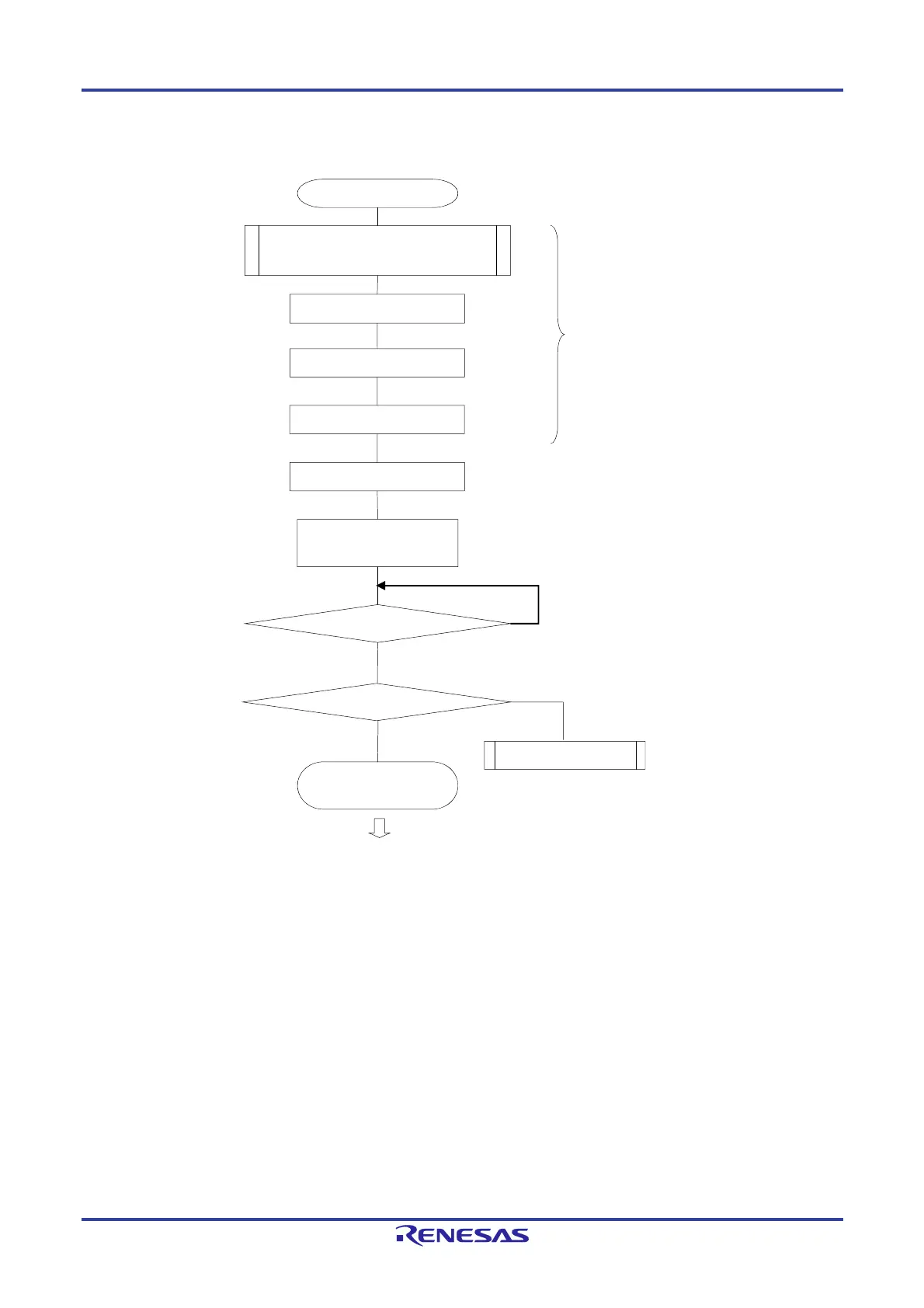

Figure 15-146. Flowchart of Address Field Transmission

Remark m: Unit number (m = 0, 1), n: Channel number (n = 0, 1), mn = 00, 01, 10, 11

Starting IIC communication

Writing 0 to the SOmn bit

Address field

transmission completed

Specify the initial settings

while the SEmn bit of

serial channel enable

status register m (SEm) is

0 (operation is stopped).

SMRmn, SCRmn: Setting communication

SPSm, SDRmn[15:9]: Setting transfer rate

Transfer end interrupt

enerated?

Yes

Writing address and R/W

data to the SDRmn register

Writing 1 to the SSmn bit

Parity error (ACK error) flag

PEFmn = 1 ?

Yes

ACK reception error

To data transmission flow

and data reception flow

Writing 1 to the SOEmn bit

Writing 0 to the CKOmn bit
