RL78/F13, F14 CHAPTER 3 CPU ARCHITECTURE

R01UH0368EJ0210 Rev.2.10 123

Dec 10, 2015

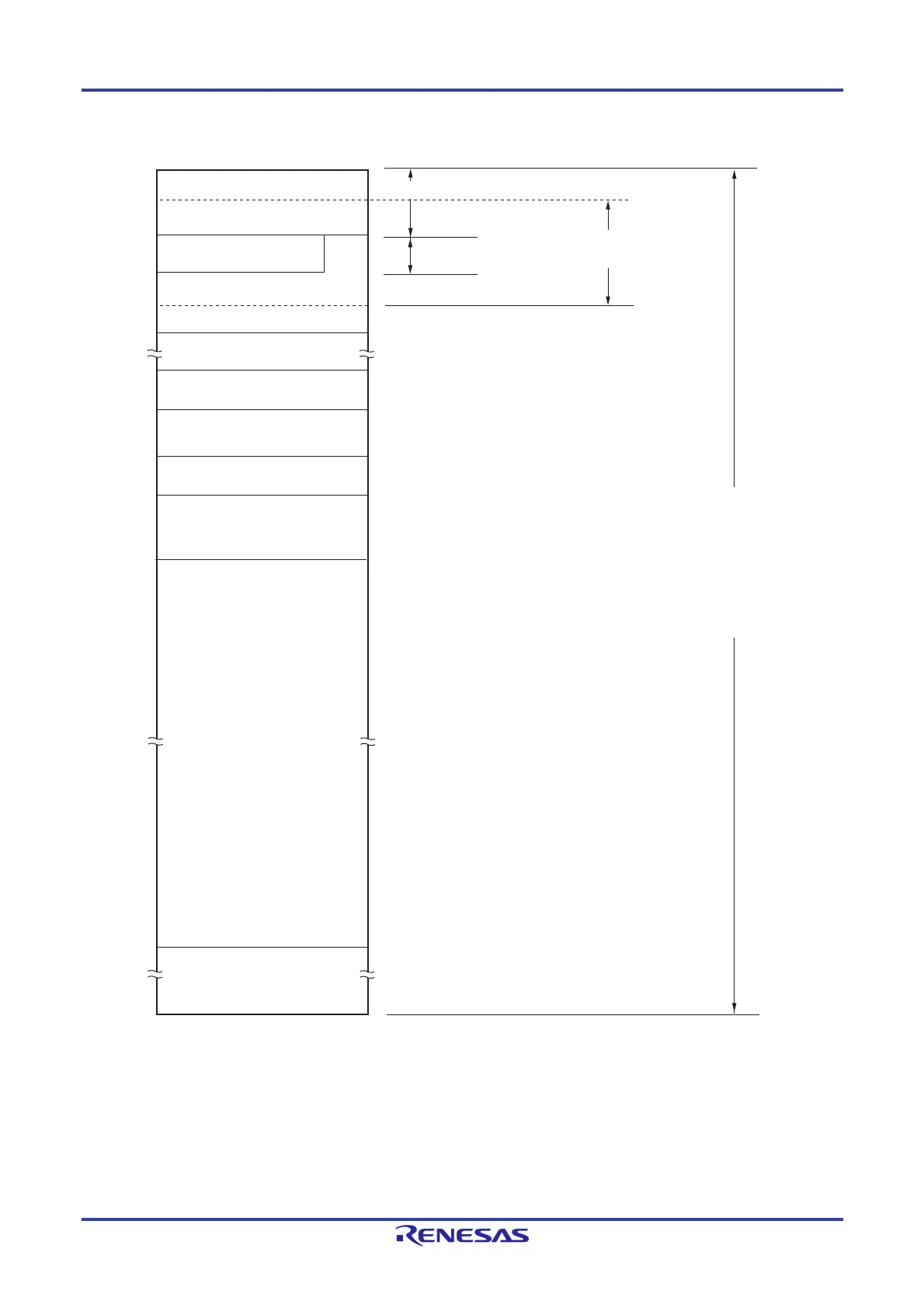

Figure 3-19. Correspondence between Data Memory and Addressing (R5F10AmA (m = 6, A, B, G))

Caution When executing instructions from the RAM area, be sure to initialize the used RAM area + 10 bytes

with any desired value.

FFFFFH

00000H

FFF00H

FFEFFH

FFEE0H

FFEDFH

F0800H

F07FFH

F0000H

EFFFFH

04000H

03FFFH

FFB00H

AFFH

F2000H

F1FFFH

F1000H

F0FFFH

FFE20H

FFE1FH

FFF20H

FFF1FH

F4000H

F3FFFH

Special function register (SFR)

256 bytes

General-purpose register

32 bytes

Code flash memory

16 KB

Special function register (2nd SFR)

2 KB

Mirror

8 KB

Reserved

Direct addressing

Based addressing

Based indexed addressing

Short direct

addressing

SFR addressing

RAM

1 KB

Data flash memory

4 KB
