RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 205

Dec 10, 2015

For example, figures 4-1 and 4-4 show block diagrams of port 0 for 100-pin products.

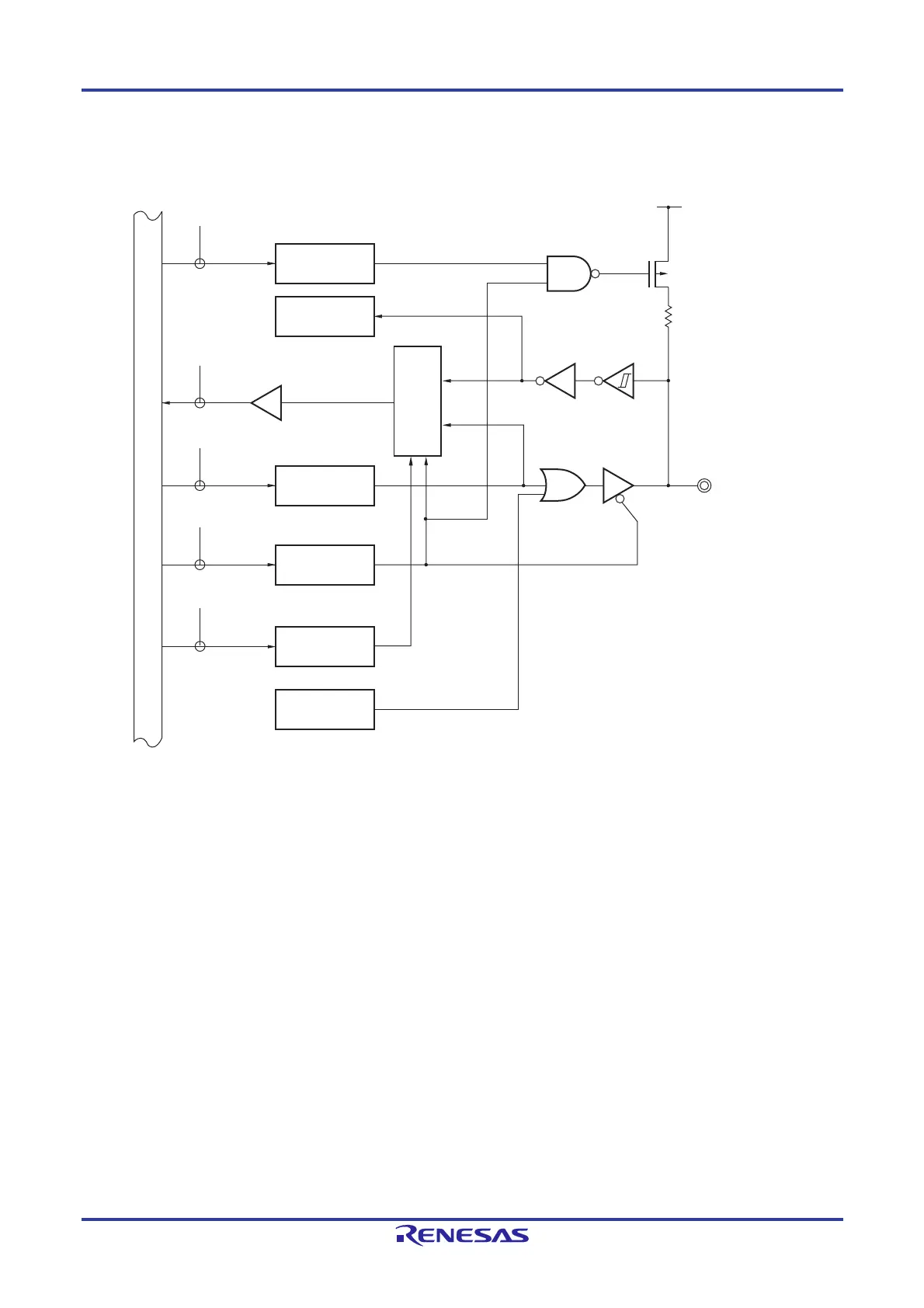

Figure 4-1. Block Diagram of P00

WRPU

PORT

WRPM

PU00

Alternate function

INTP9/(TI05)

(TO05)

P00

PM00

EVDD

P-ch

PU0

PM0

WRPMS

PMS

PMS0

P00/INTP9/

(TI05)/(TO05)

Internal bus

Selector

Output latch

P0: Port register 0

PU0: Pull-up resistor option register 0

PM0: Port mode register 0

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
