RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 208

Dec 10, 2015

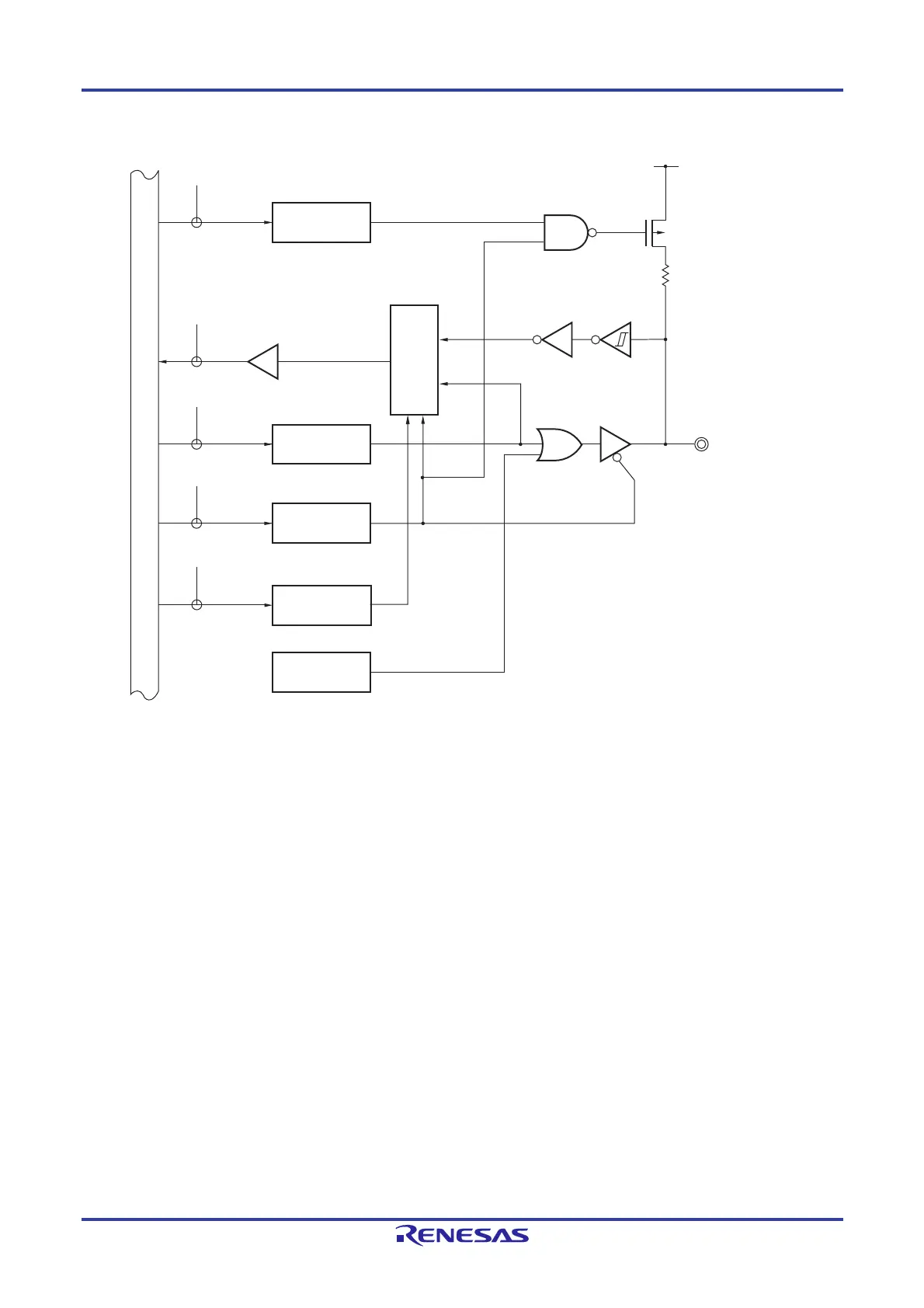

Figure 4-4. Block Diagram of P03

P03/(RTC1HZ)

PORT

WRPM

PU03

PM03

EVDD

P-ch

PU0

PM0

WRPMS

PMS

PMS0

P03

Alternate function

(RTC1HZ)

Internal bus

Selector

Output latch

P0: Port register 0

PU0: Pull-up resistor option register 0

PM0: Port mode register 0

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
