RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 207

Dec 10, 2015

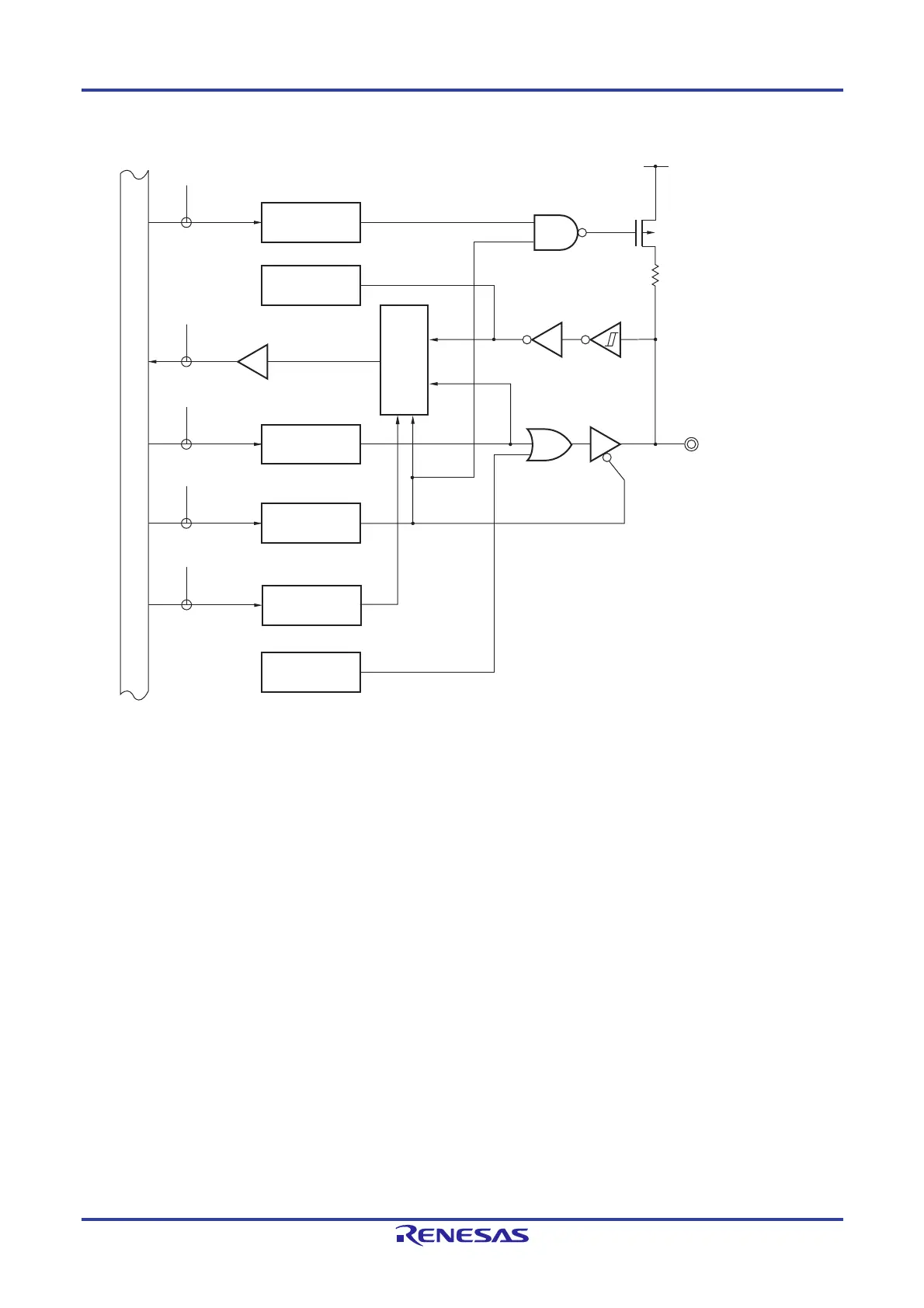

Figure 4-3. Block Diagram of P02

P02/(TI06)/(TO06)

PORT

PU02

(TI06)

(TO06)

PM02

P-ch

PU0

PM0

PMS

PMS0

P02

Alternate function

Internal bus

Selector

Output latch

P0: Port register 0

PU0: Pull-up resistor option register 0

PM0: Port mode register 0

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
