RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 233

Dec 10, 2015

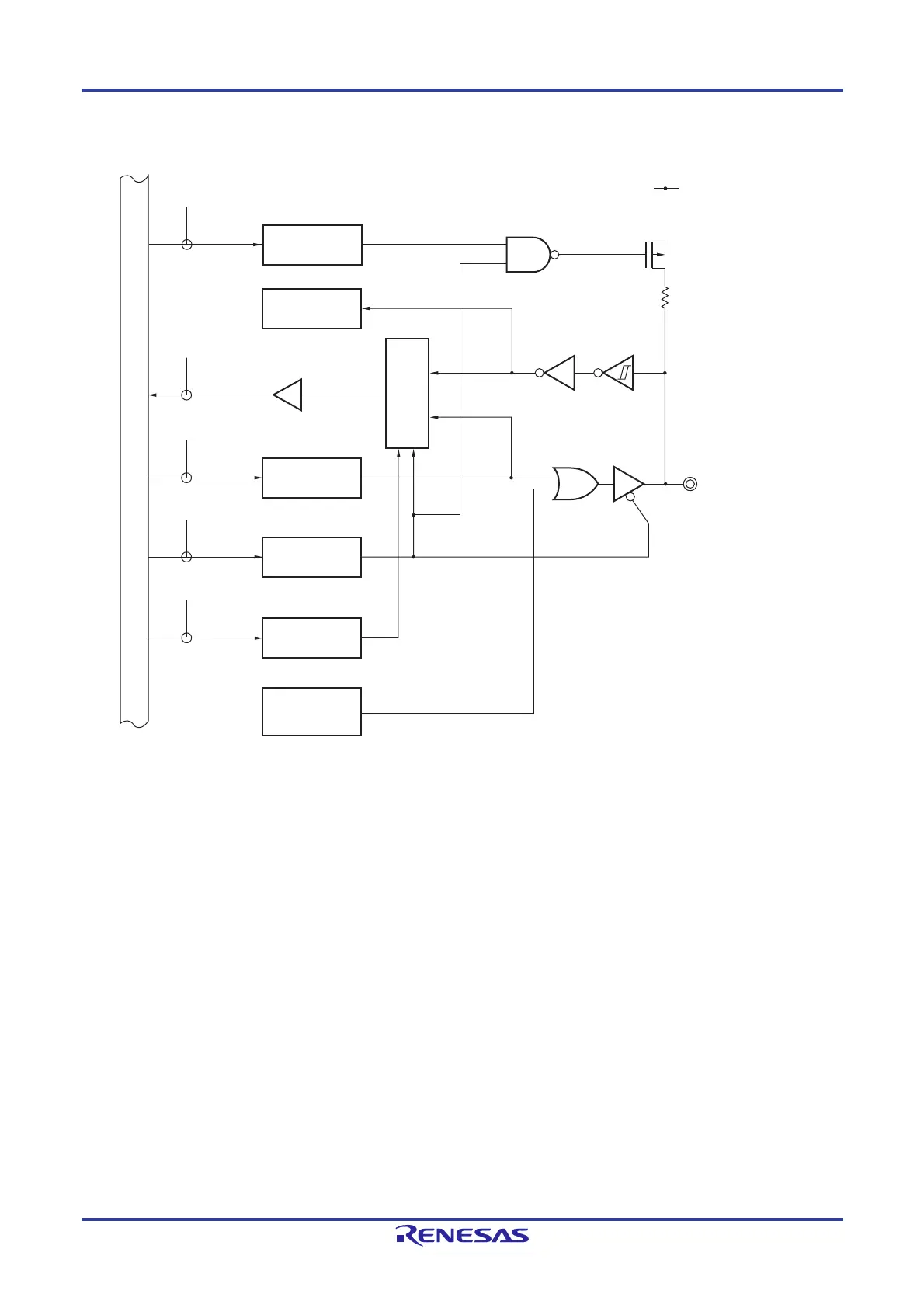

Figure 4-22. Block Diagram of P45

P45/(TI10)/(TO10)

PORT

P45

Alternate function

(TO10)

PM4

P-ch

PU4

PM45

PU45

PMS

PMS0

Alternate function

Internal bus

Selector

Output latch

P4: Port register 4

PU4: Pull-up resistor option register 4

PM4: Port mode register 4

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
