RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 240

Dec 10, 2015

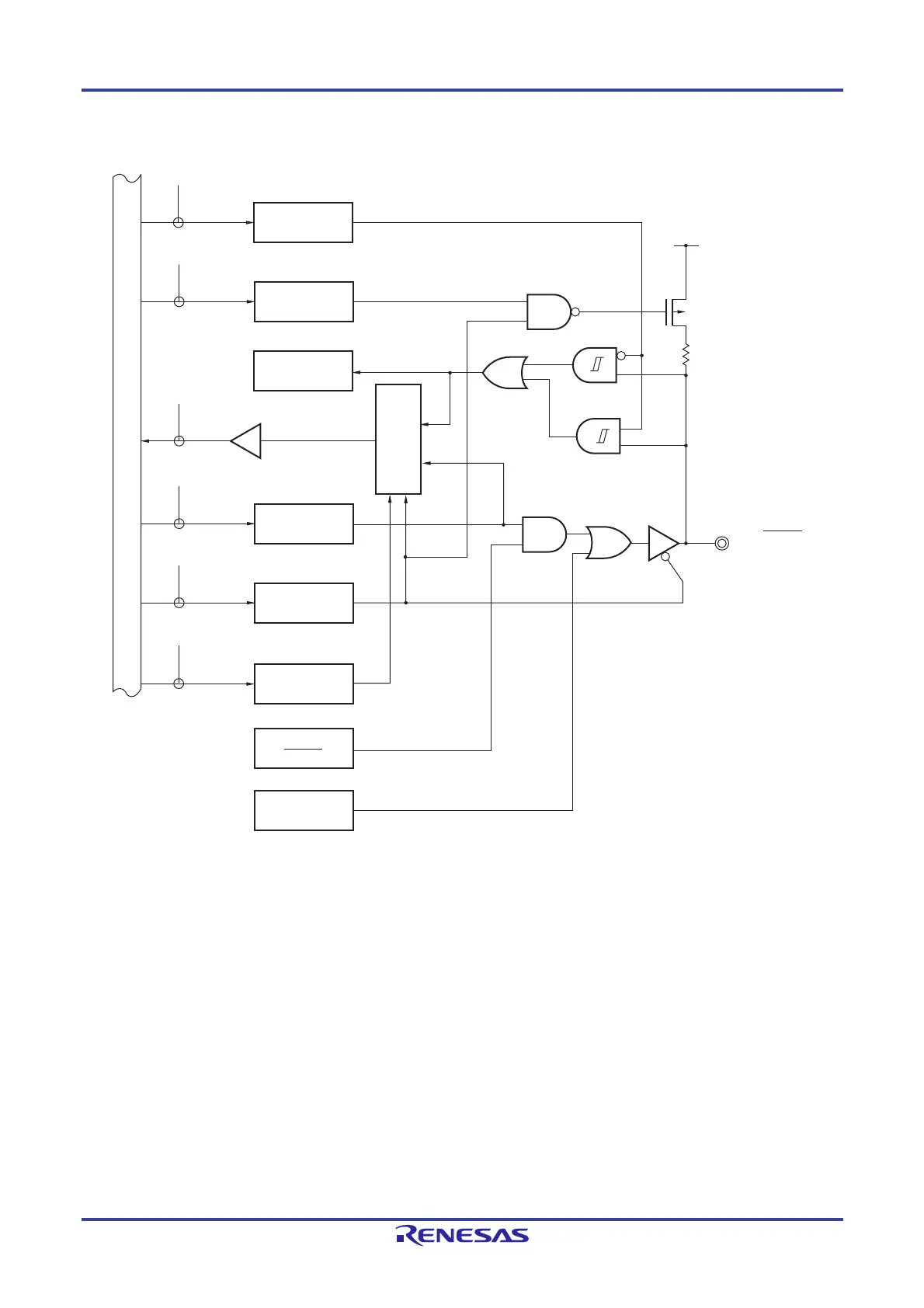

Figure 4-27. Block Diagram of P52

P52/(SCK01)

(STOPST)

PORT

PU52

P52

PM52

P-ch

PU5

PM5

PMS

PMS0

(SCK01)

PITHL

PITHL52

PITHL5

CMOS

(Schmitt1)

CMOS

(Schmitt3)

Internal bus

Output latch

Alternate function

(STOPST)

Selector

P5: Port register 5

PU5: Pull-up resistor option register 5

PM5: Port mode register 5

PMS: Port mode select register

PITHL5: Port input threshold control register 5

RD: Read signal

WRxx: Write signal
