RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 244

Dec 10, 2015

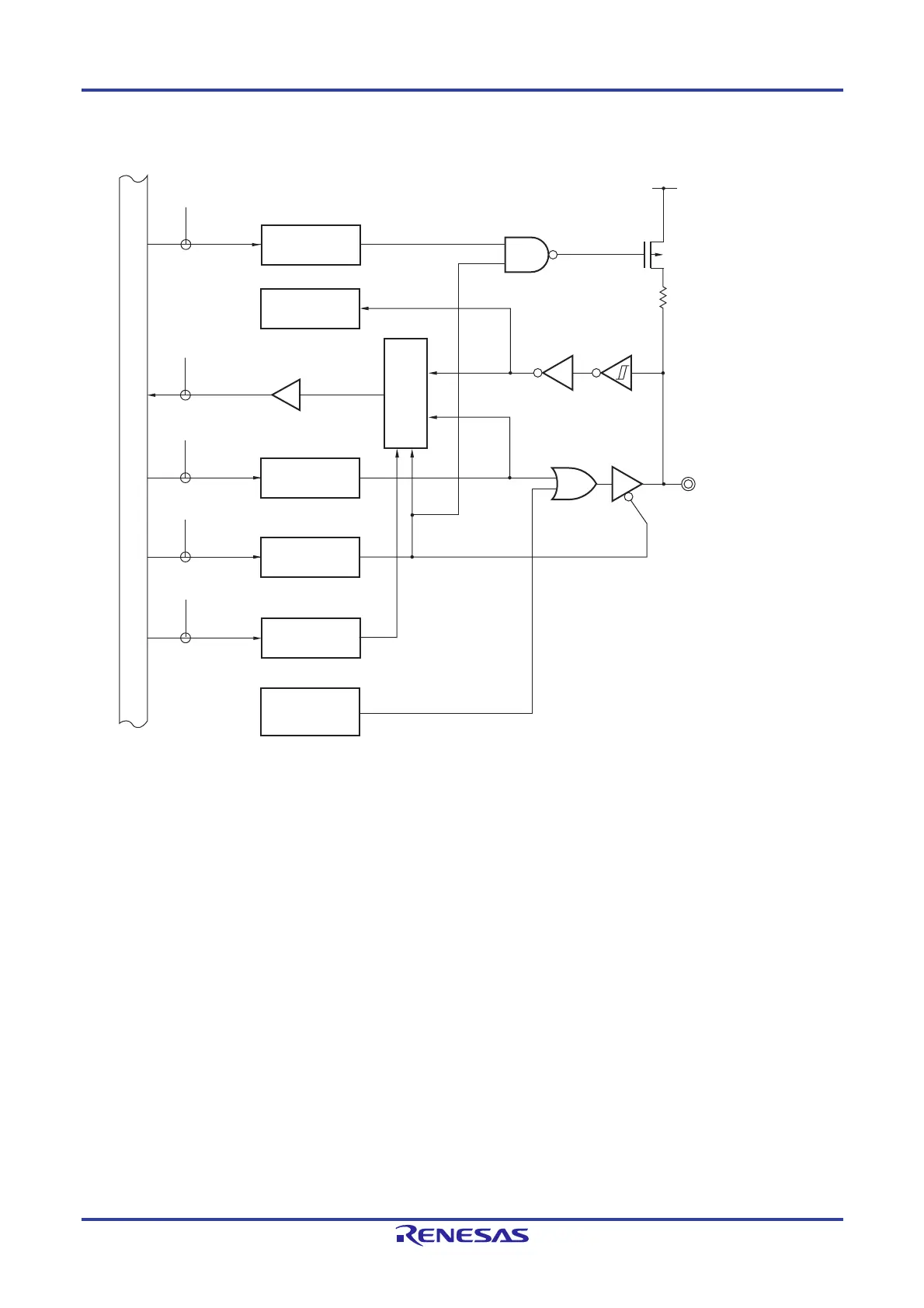

Figure 4-31. Block Diagram of P56

P56/(TI15)/(TO15)

(SNZOUT1)

PORT

P56

(TO15)/

(SNZOUT1)

PM5

P-ch

PU5

PM56

PU56

PMS

PMS0

Internal bus

Output latch

Alternate function

Selector

P5: Port register 5

PU5: Pull-up resistor option register 5

PM5: Port mode register 5

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
