RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 255

Dec 10, 2015

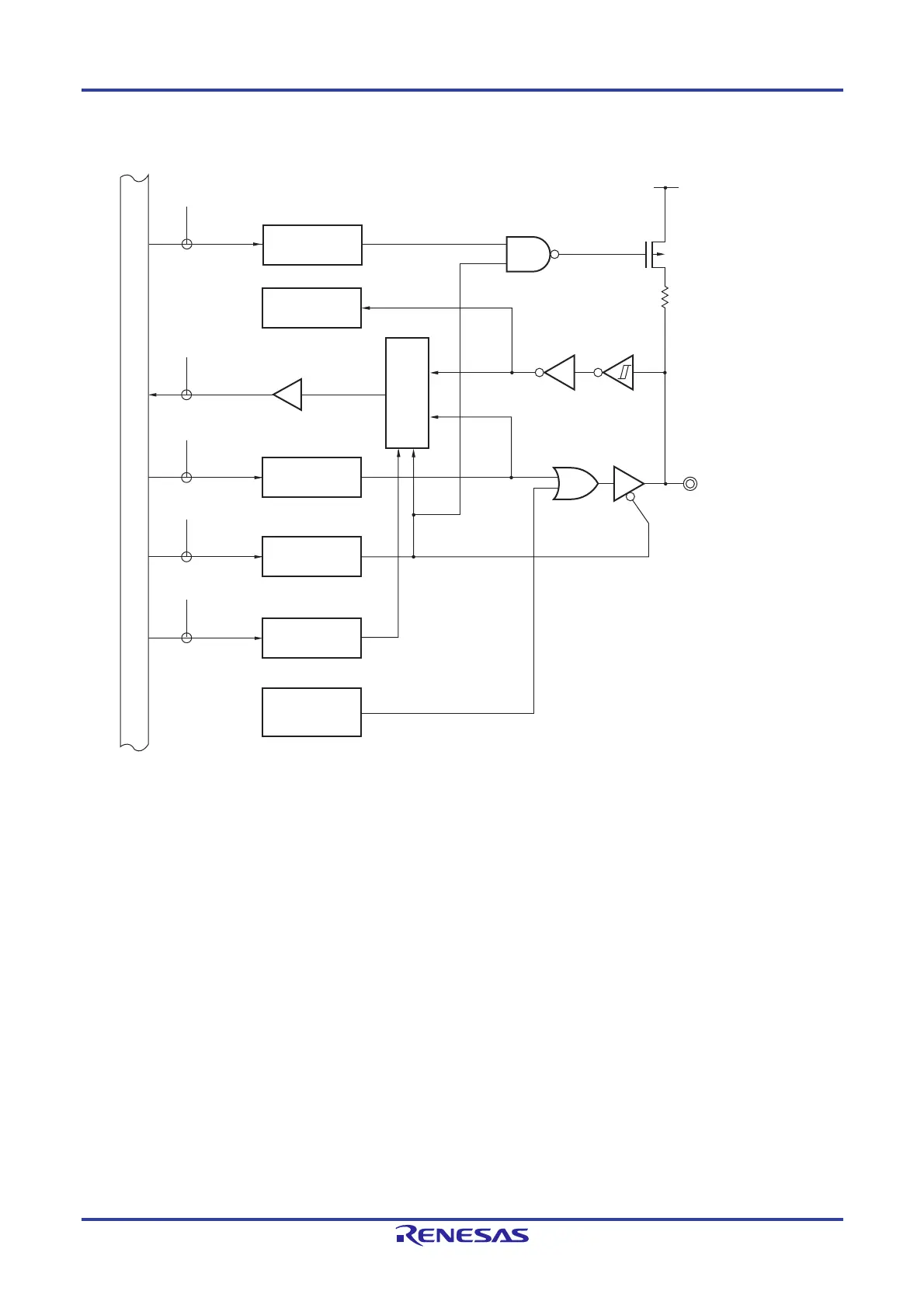

Figure 4-40. Block Diagram of P67

P67/(TI02)/(TO02)

PORT

WRPM

P67

(TO02)

PM6

WRPU

EVDD

P-ch

PU6

PM67

PU67

WRPMS

PMS

PMS0

Internal bus

Output latch

Alternate function

Selector

P6: Port register 6

PU6: Pull-up resistor option register 6

PM6: Port mode register 6

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
