RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 254

Dec 10, 2015

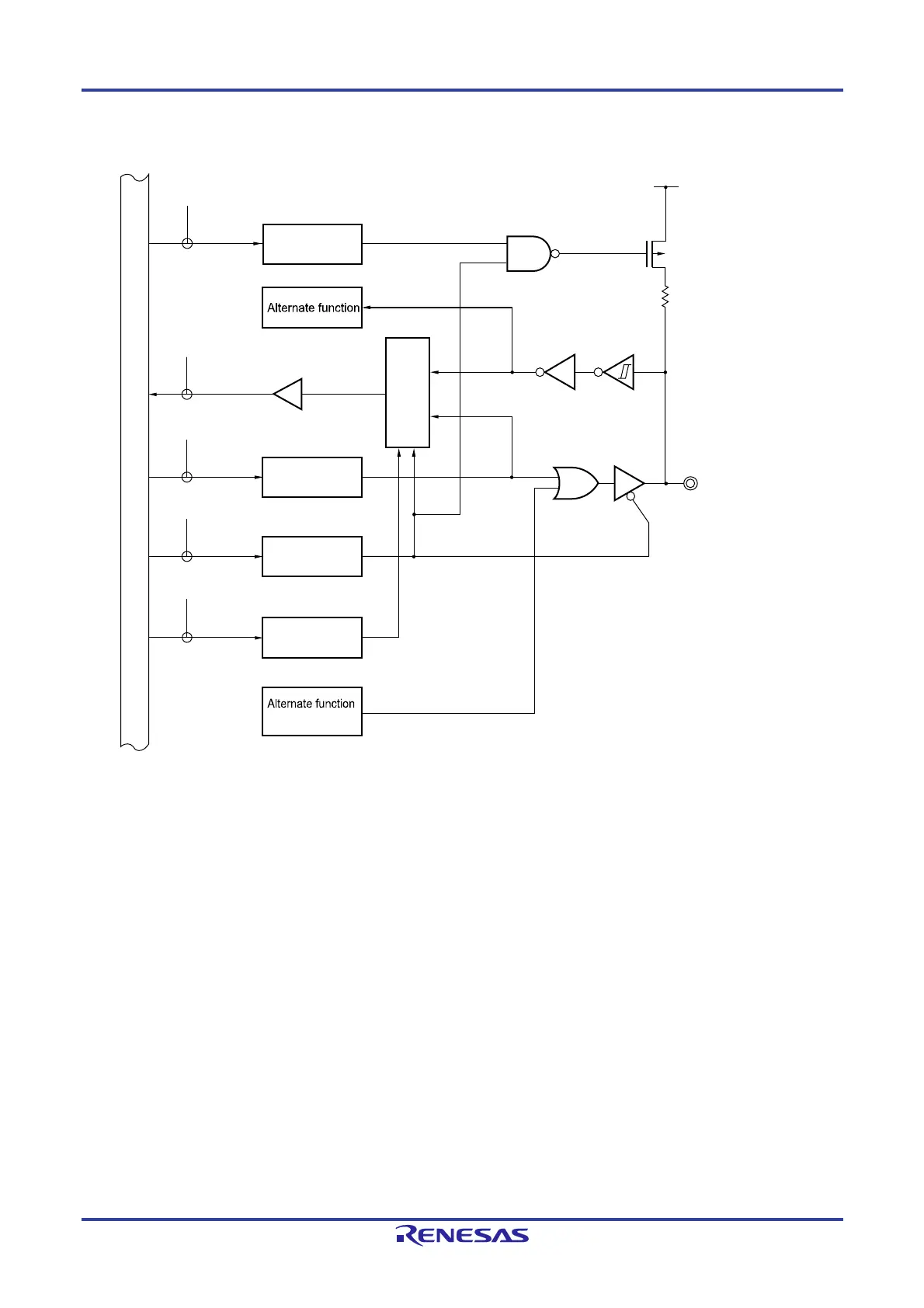

Figure 4-39. Block Diagram of P66

P66/(TI00)/(TO00)

PORT

P66

(TO00)

PM6

P-ch

PU6

PM66

PU66

PMS

PMS0

Internal bus

Output latch

Selector

P6: Port register 6

PU6: Pull-up resistor option register 6

PM6: Port mode register 6

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
