RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 253

Dec 10, 2015

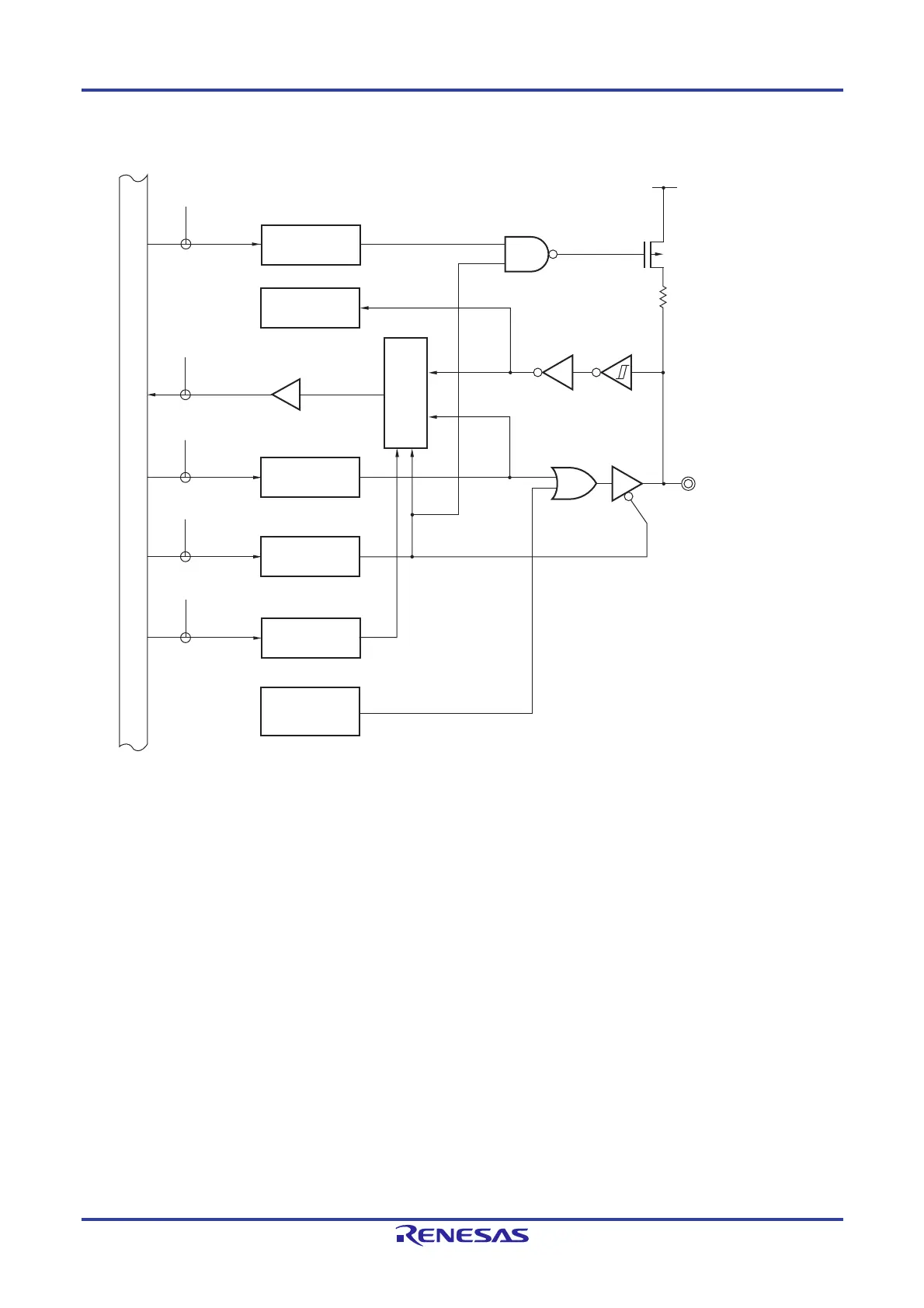

Figure 4-38. Block Diagram of P65

P65/(TI16)/(TO16)

(SNZOUT2)

PORT

P65

(TO16)/

(SNZOUT2)

PM6

P-ch

PU6

PM65

PU65

PMS

PMS0

Internal bus

Output latch

Alternate function

Selector

P6: Port register 6

PU6: Pull-up resistor option register 6

PM6: Port mode register 6

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
