RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 272

Dec 10, 2015

Figures 4-49 to 4-56 show block diagrams of port 8 for 100-pin products.

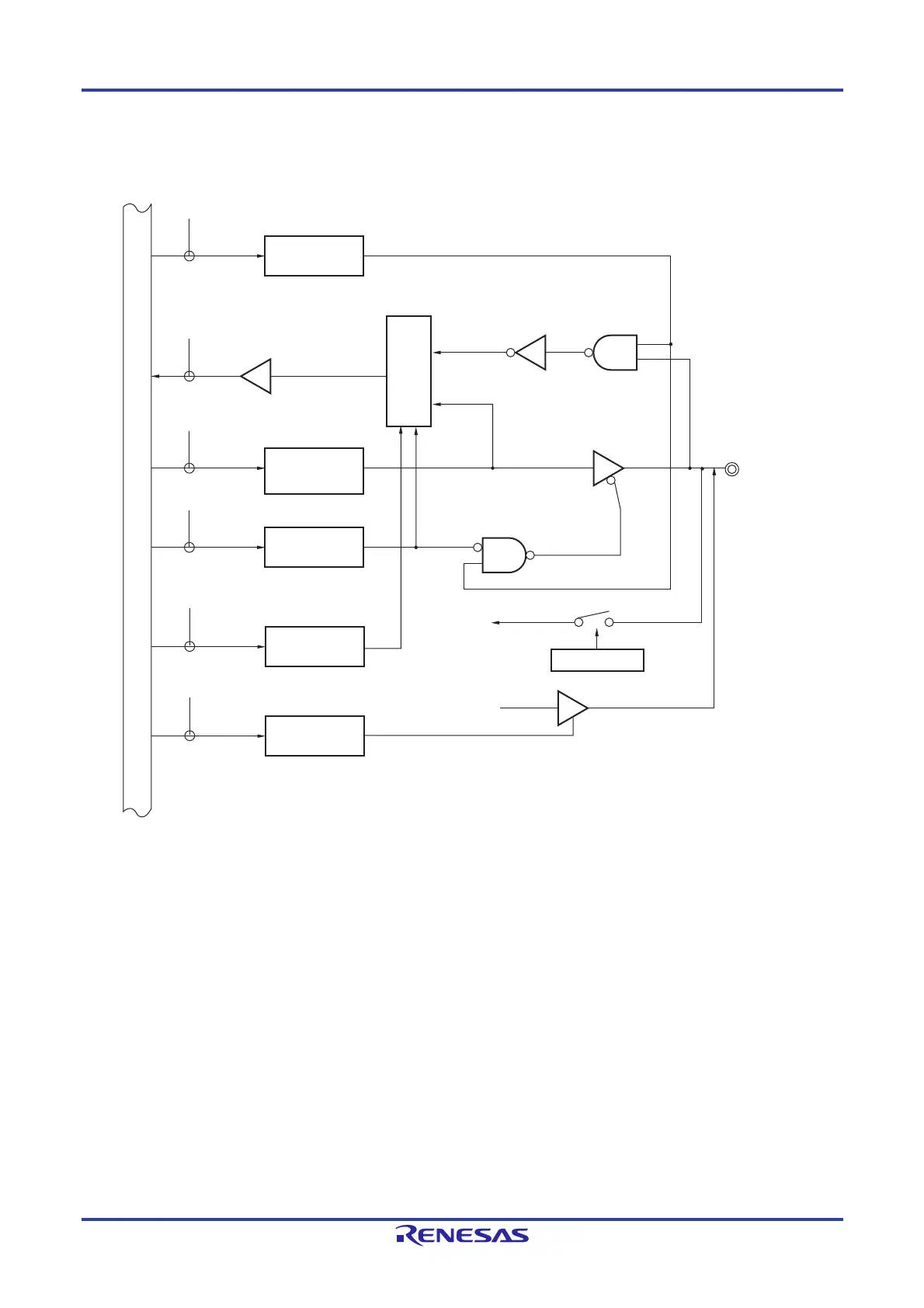

Figure 4-49. Block Diagram of P80

P80/ANI2

ANO0

0: Analog input

1: Digital I/O

ADPC

PORT

ADPC

PM8

PM80

P80

ADPC4 to ADPC0

PMS

PMS0

DAM2

ANO0EN

D/A converter

Internal bus

Output latch

Selector

A/D converter

ADS

ADS4 to ADS0

P8: Port register 8

PM8: Port mode register 8

PMS: Port mode select register

ADPC: A/D port configuration register

DAM2: D/A converter mode register 2

ADS: Analog input channel specification register

RD: Read signal

WRxx: Write signal
