RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 285

Dec 10, 2015

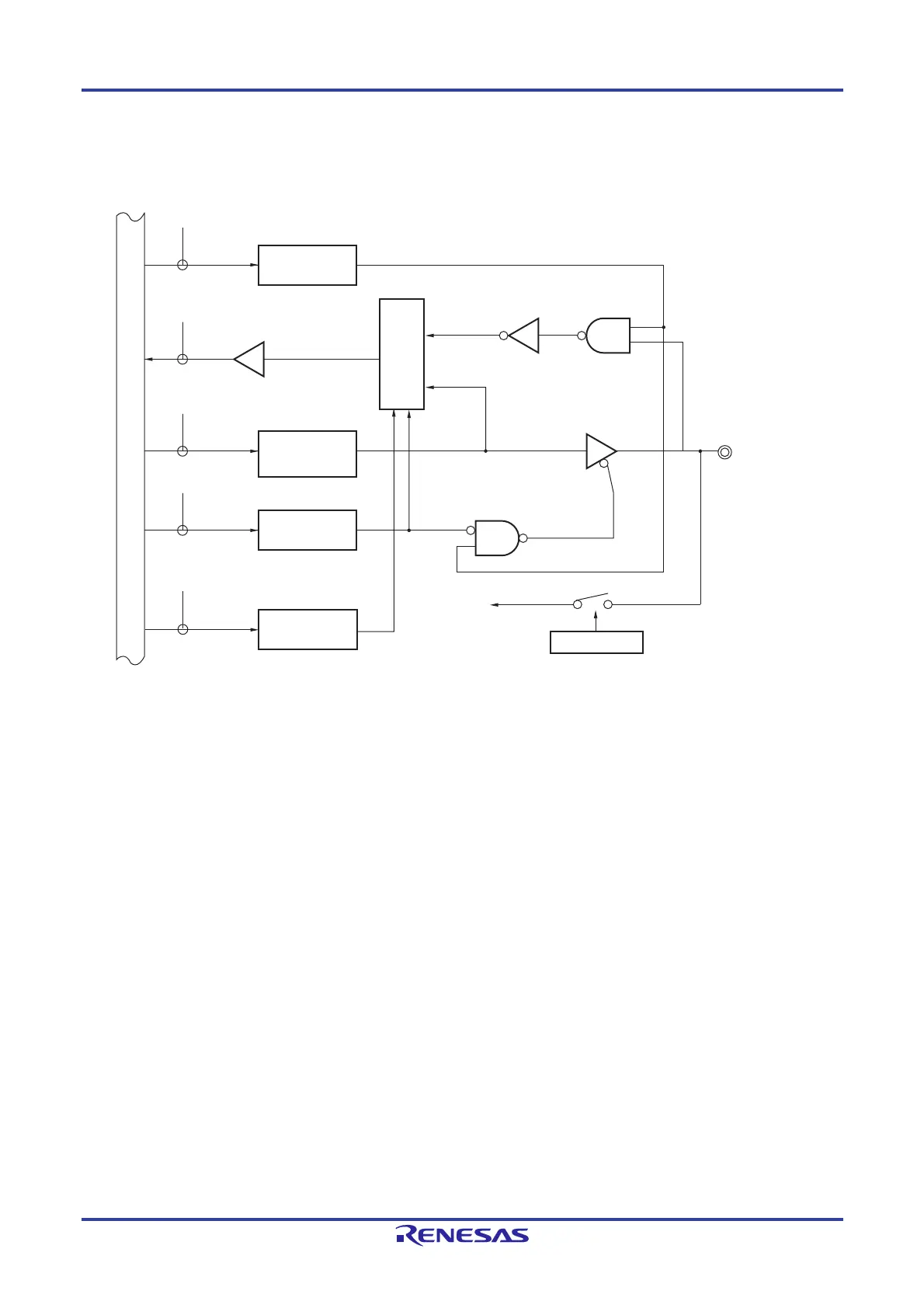

Figures 4-58 to 4-60 show block diagrams of port 10 for 100-pin products.

Figure 4-58. Block Diagram of P100 to P105

P100/ANI18,

P101/ANI19,

P102/ANI20,

P103/ANI21,

P104/ANI22,

P105/ANI23

ADPC

PORT

ADPC

PM10

P10

PM100 to PM105

P100 to P105

ADPC4 to ADPC0

PMS

PMS0

0: Analog input

1: Digital I/O

Internal bus

Output latch

Selector

A/D converter

ADS

ADS4 to ADS0

P10: Port register 10

PM10: Port mode register 10

PMS: Port mode select register

ADPC: A/D port configuration register

ADS: Analog input channel specification register

RD: Read signal

WRxx: Write signal
