RL78/F13, F14 CHAPTER 6 TIMER ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 495

Dec 10, 2015

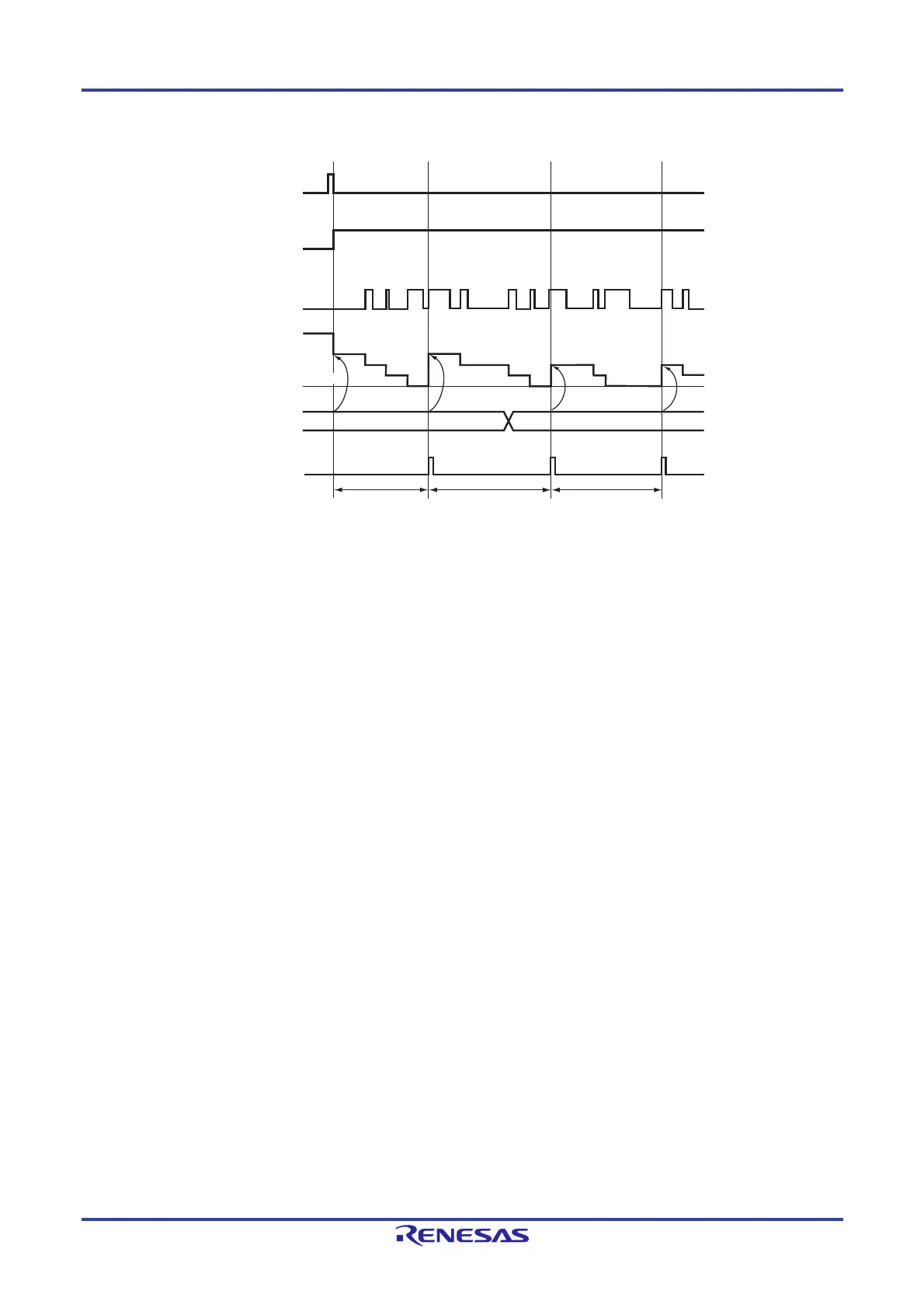

Figure 6-48. Example of Basic Timing of Operation as External Event Counter

Remarks 1. m: Unit number (m = 0, 1), n: Channel number (n = 0 to 7)

2. TSmn: Bit n of timer channel start register m (TSm)

TEmn: Bit n of timer channel enable status register m (TEm)

TImn: TImn pin input signal

TCRmn: Timer count register mn (TCRmn)

TDRmn: Timer data register mn (TDRmn)

3. Unit 1 is not provided in the Group A products.

Channels 7 to 4 of unit 1 are not provided in the Group B, C, and D products.

TSmn

TEmn

TImn

TDRmn

TCRmn

0003H 0002H

0000H

INTTMmn

4 events

3 events
