RL78/F13, F14 CHAPTER 6 TIMER ARRAY UNIT
R01UH0368EJ0210 Rev.2.10 505
Dec 10, 2015

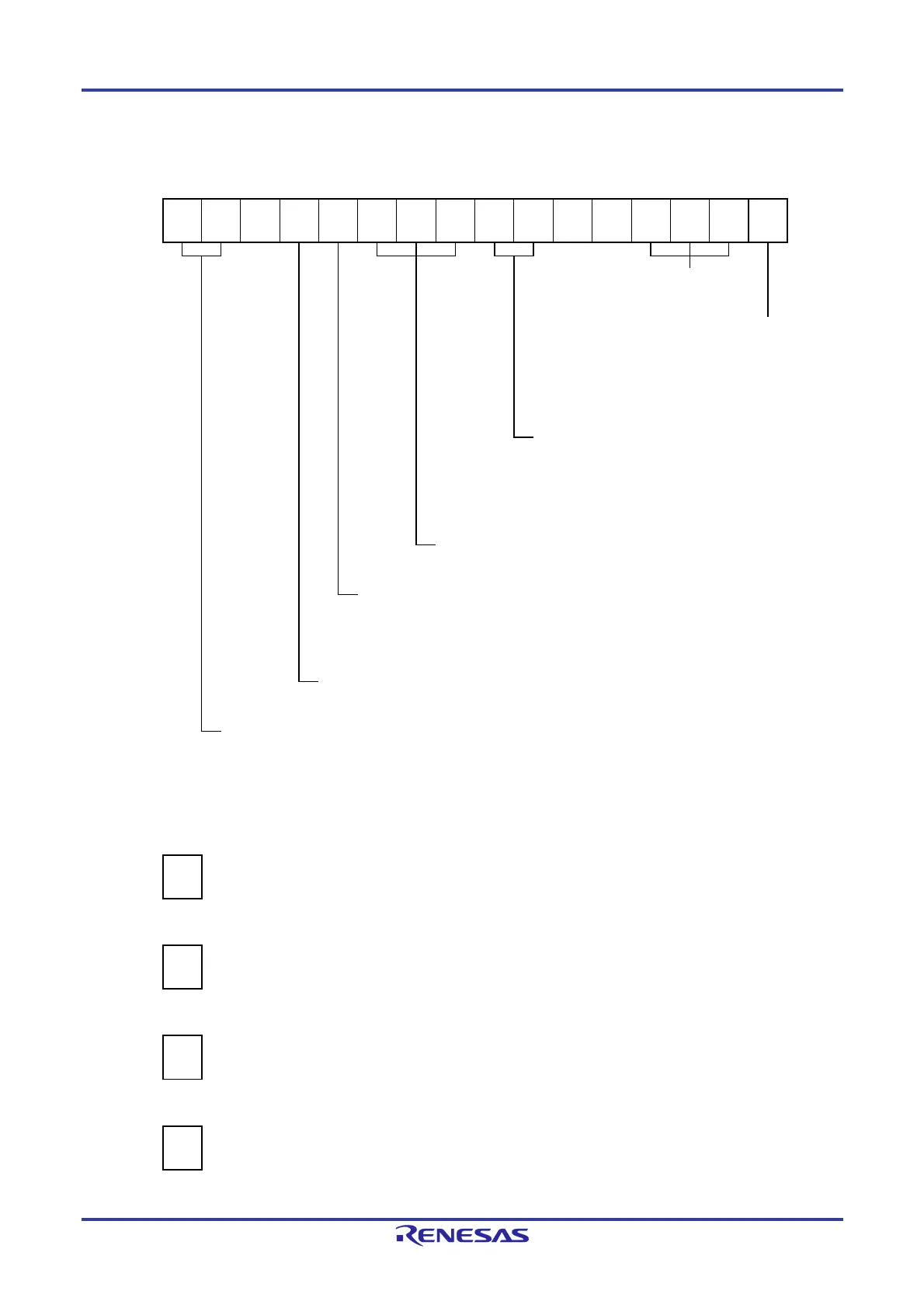

Figure 6-57. Example of Set Contents of Registers to Measure Input Pulse Interval
(a) Timer mode register mn (TMRmn)
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
TMRmn
CKSmn1
1/0
CKSmn0
1/0
0
CCSmn
0
M/S
Note
0
STSmn2
0
STSmn1
0
STSmn0
1
CISmn1
1/0
CISmn0
1/0
0
0
MDmn3
0
MDmn2
1
MDmn1
0
MDmn0
1/0
Operation mode of channel n
010B: Ca
ture mode
Setting of operation when counting is started
0: Does not generate INTTMmn when
counting is started.
1: Generates INTTMmn when counting is
started.
Selection of TImn pin input edge
00B: Detects falling edge.
01B: Detects rising edge.
10B: Detects both edges.
11B: Setting prohibited
Capture trigger selection
001B: Selects the TImn pin input valid edge.
Setting of MASTERmn bit (channels 2, 4, and 6)
0: Independent channel operation function.
Setting of SPLITmn bit (channels 1 and 3)
0: 16-bit timer function.
Count clock selection
0: Selects operation clock (f
MCK).
Operation clock (f
MCK) selection
00B: Selects CKm0 as operation clock of channel n.
10B: Selects CKm1 as operation clock of channel n.
01B: Selects CKm2 as operation clock of channel n.
11B: Selects CKm3 as operation clock of channel n.
(b) Timer output register m (TOm)
Bit n
TOm
TOmn
0
0: Outputs 0 from TOmn.
(c) Timer output enable register m (TOEm)
Bit n
TOEm
TOEmn
0
0: Stops TOmn output operation by counting operation.
(d) Timer output level register m (TOLm)
Bit n
TOLm
TOLmn
0
0: Cleared to 0 when TOMmn = 0 (master channel output mode).
(e) Timer output mode register m (TOMm)
Bit n
TOMm
TOMmn
0
0: Sets master channel output mode.
Note TMRm2, TMRm4, TMRm6: MASTERmn bit
TMRm1, TMRm3: SPLITmn bit
To Next Page
