• The feeler moves smoothly: OK
• The feeler does not move / stops during moving / moves slowly: NG

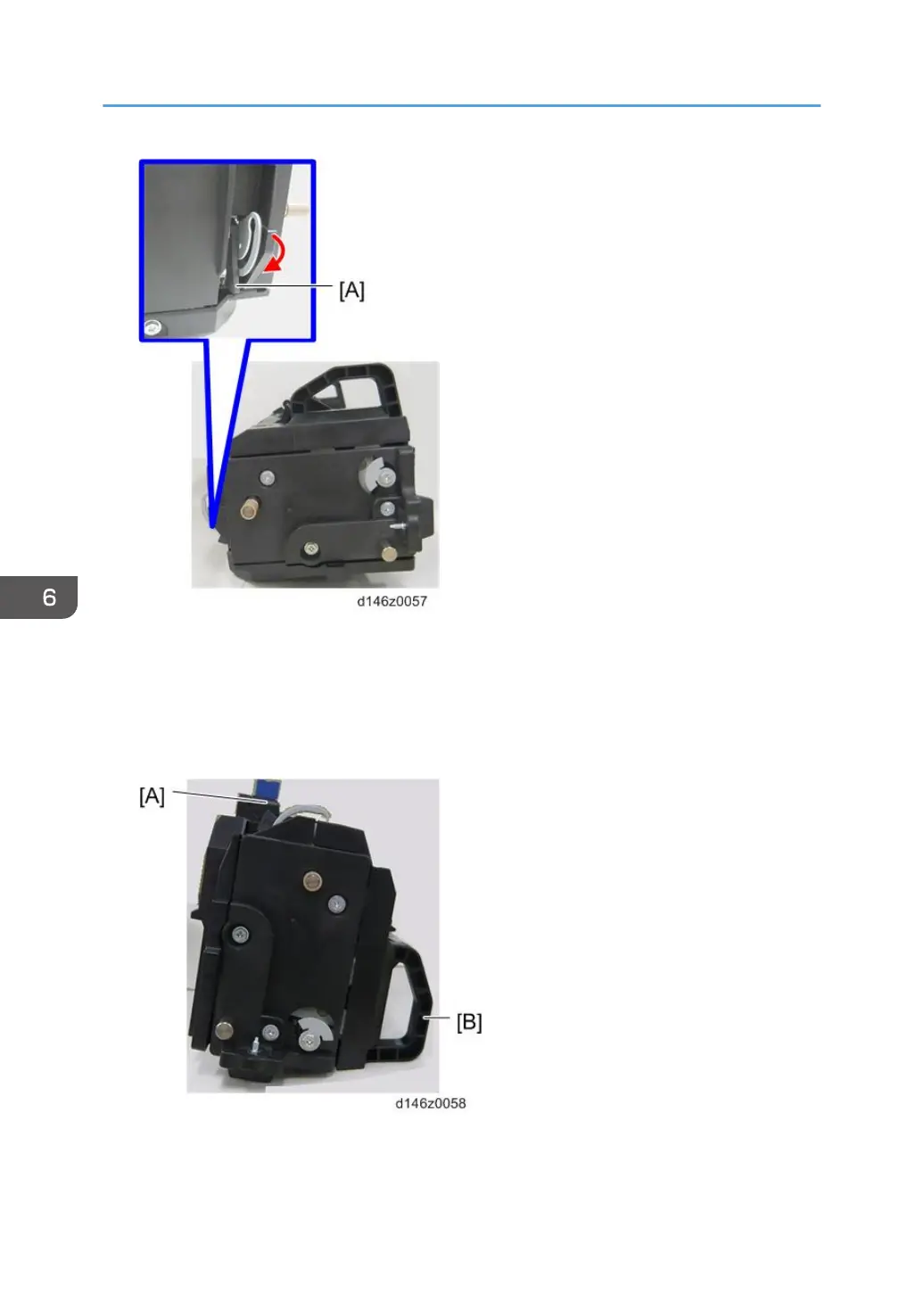

Procedure 2: Operation check for the upper side of the shield detection feeler
1. Place the fusing unit on a flat place with the drawer connector [A] turned up and the handle [B]
touching a flat surface.
2. Move the shield drive gear with your hands to put the upper surface of the feeler [A] in a vertical
position.
