3. Keep your fingers off of the shield drive gear.

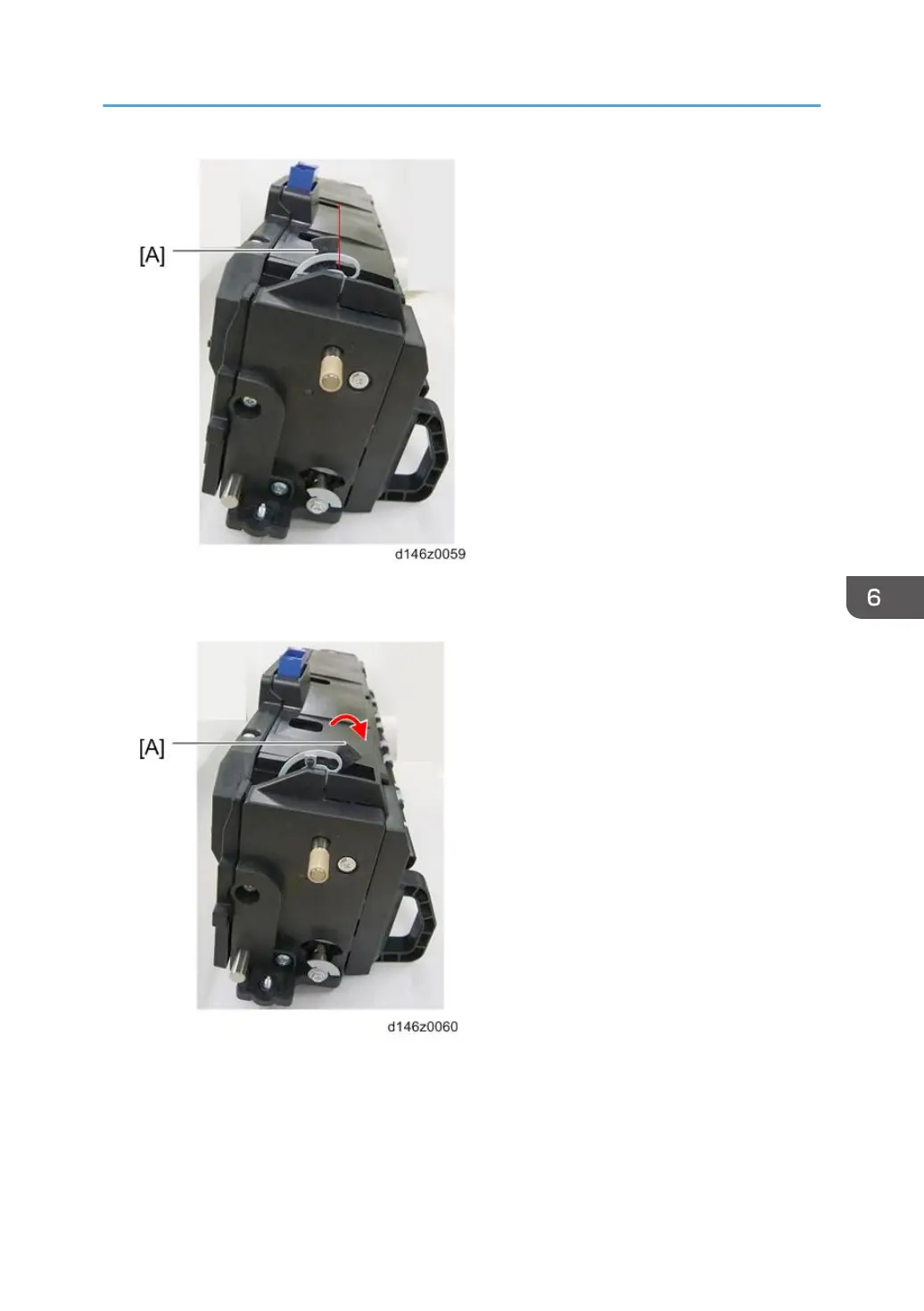

4. Make sure that the shield detection feeler [A] moves up to the highest point by its own weight.
• The feeler moves smoothly: OK
• The feeler does not move / stops during moving / moves slowly: NG
Results
• Both Procedure 1 and 2 are OK: No problem.
• Either Procedure 1 or 2 is NG: The mechanism is blocked.
Troubleshooting for SC Errors
1063
