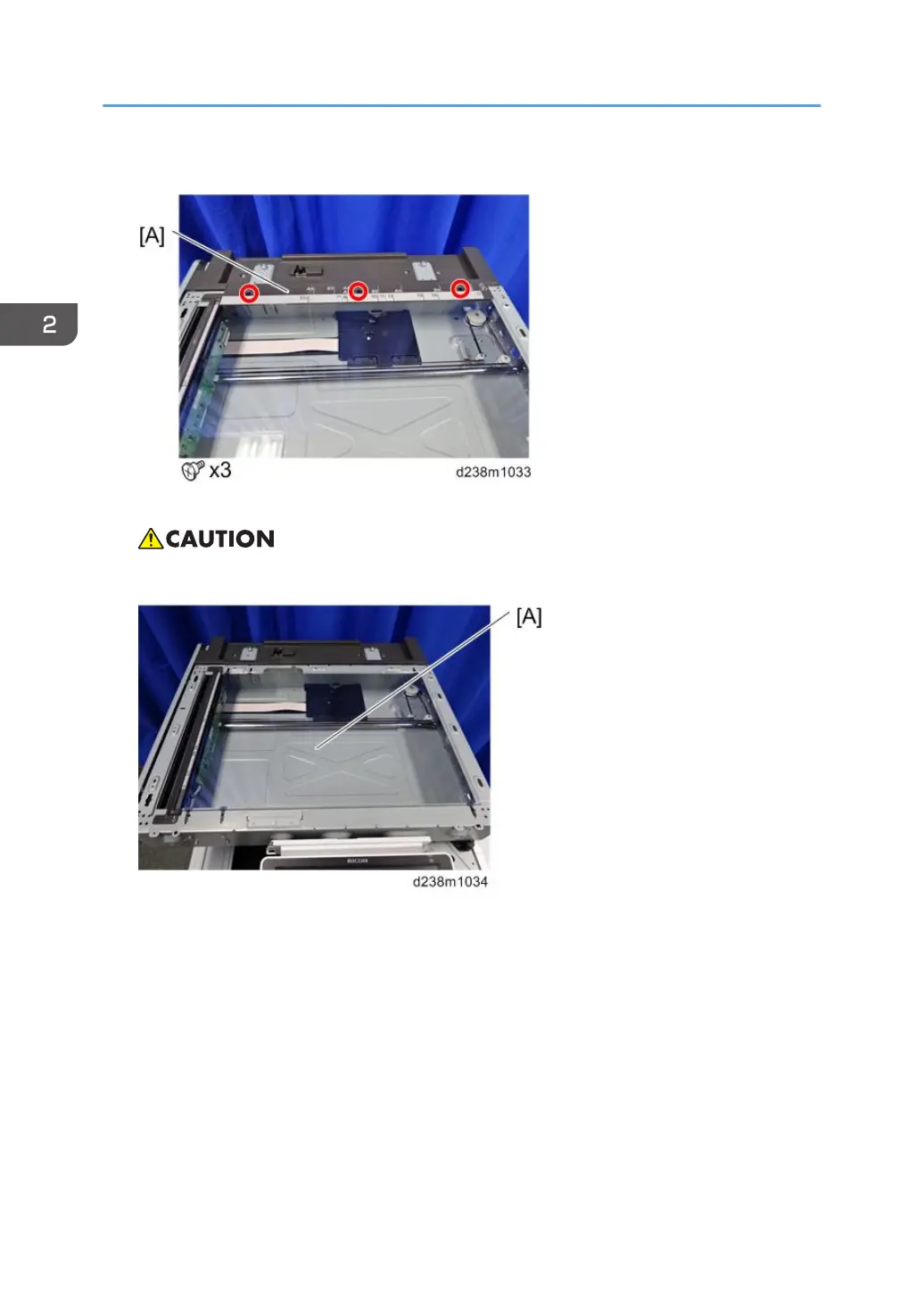

18. Remove the rear scale [A]

19. Remove the left scale and exposure glass [A]

• The exposure glass and the left scale are attached with double-sided tape.

20. Move the scanner carriage to the right.
