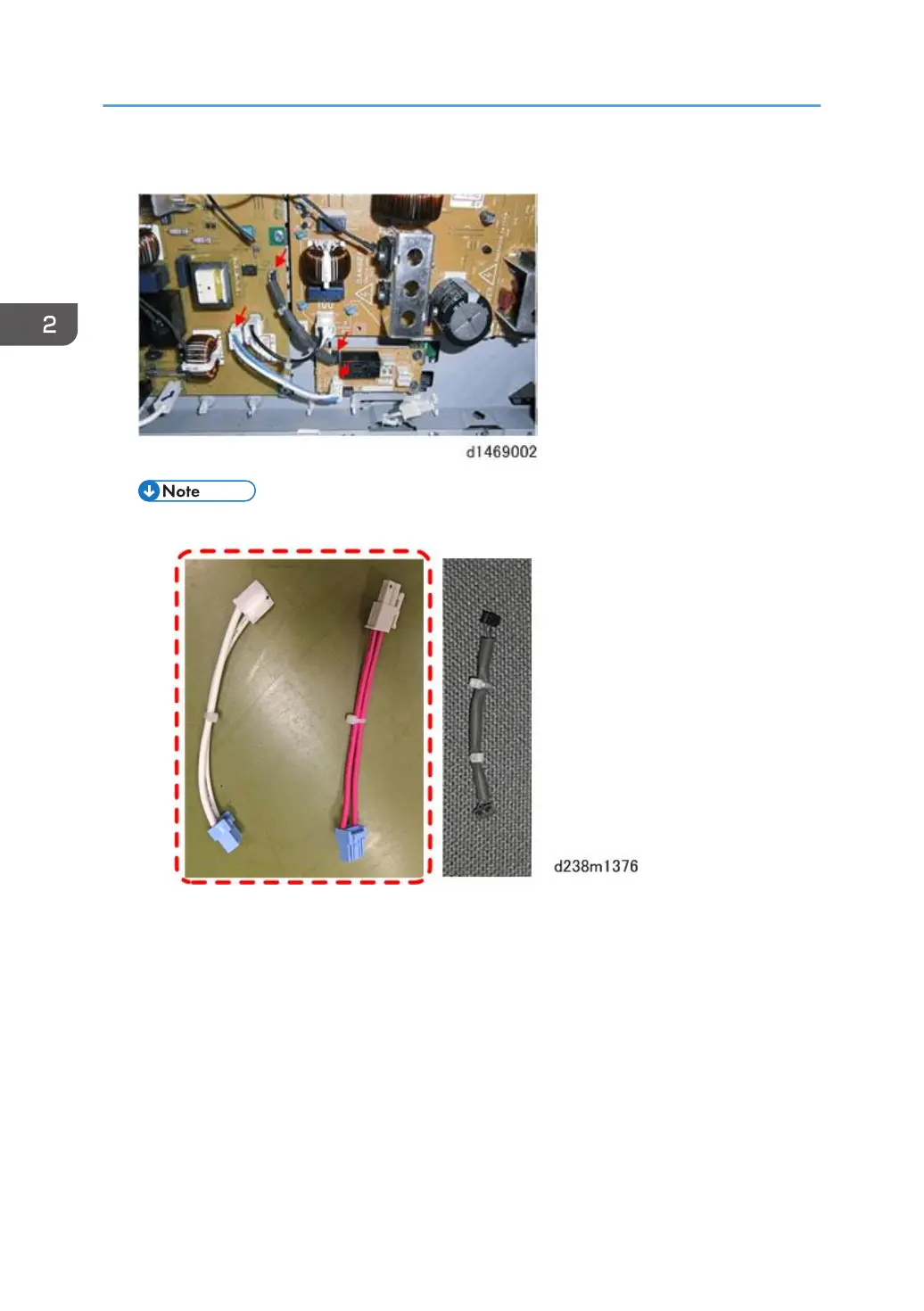

4. Connect the two harnesses between "PCB: DHB" and "PSU".

• Red dashed circled cable is only white for NA, red for EU/AA.

5. Connect connector 1.

6. Connect connector 2 to the harness already attached.

2. Installation

130
