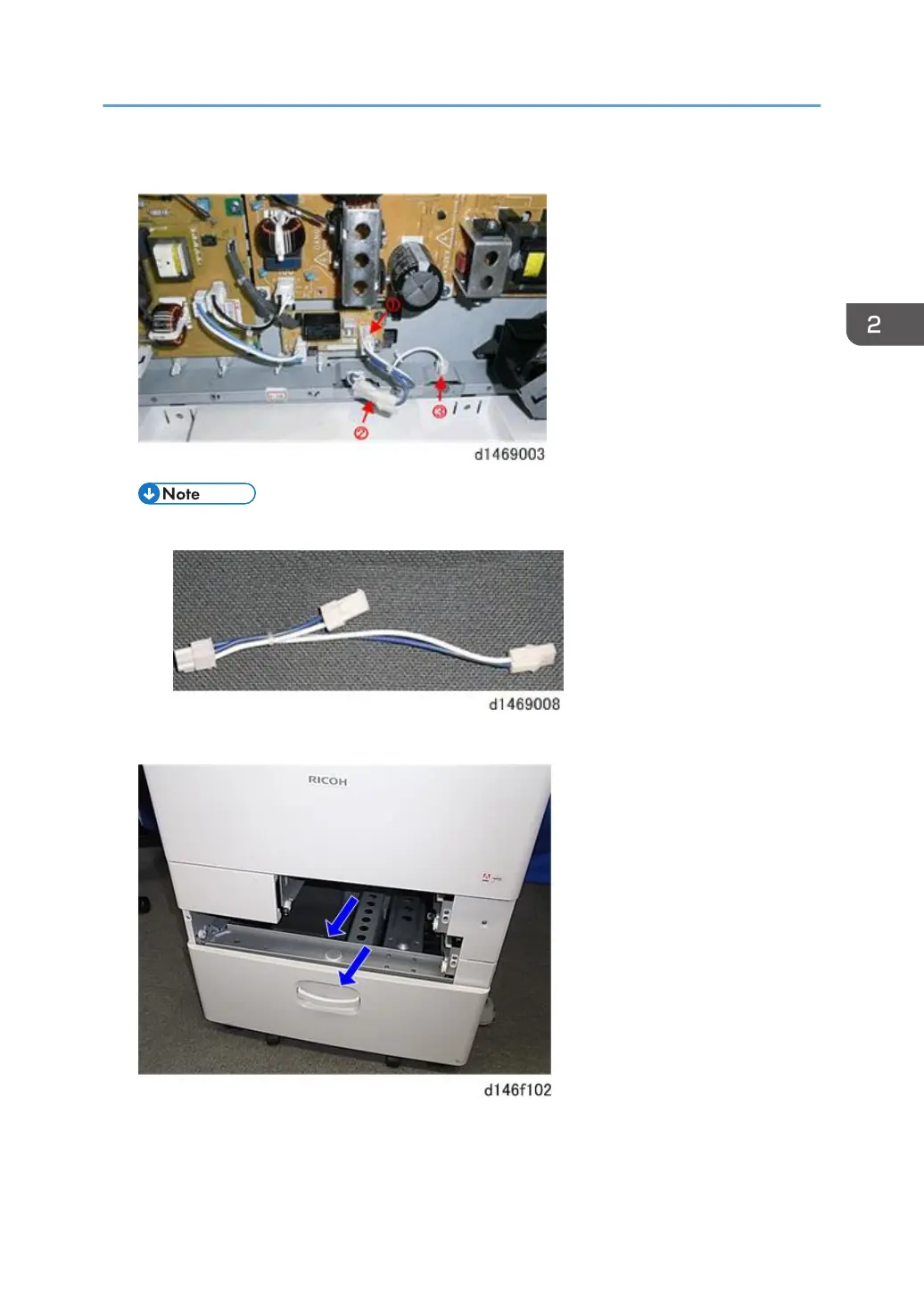

7. Attach connector 3 for the optional paper bank.

• This cable is only white for NA/EU/AA.

8. Remove trays 1 and 2 from the machine.

Anti-Condensation Heater for Paper Feed Trays

131
