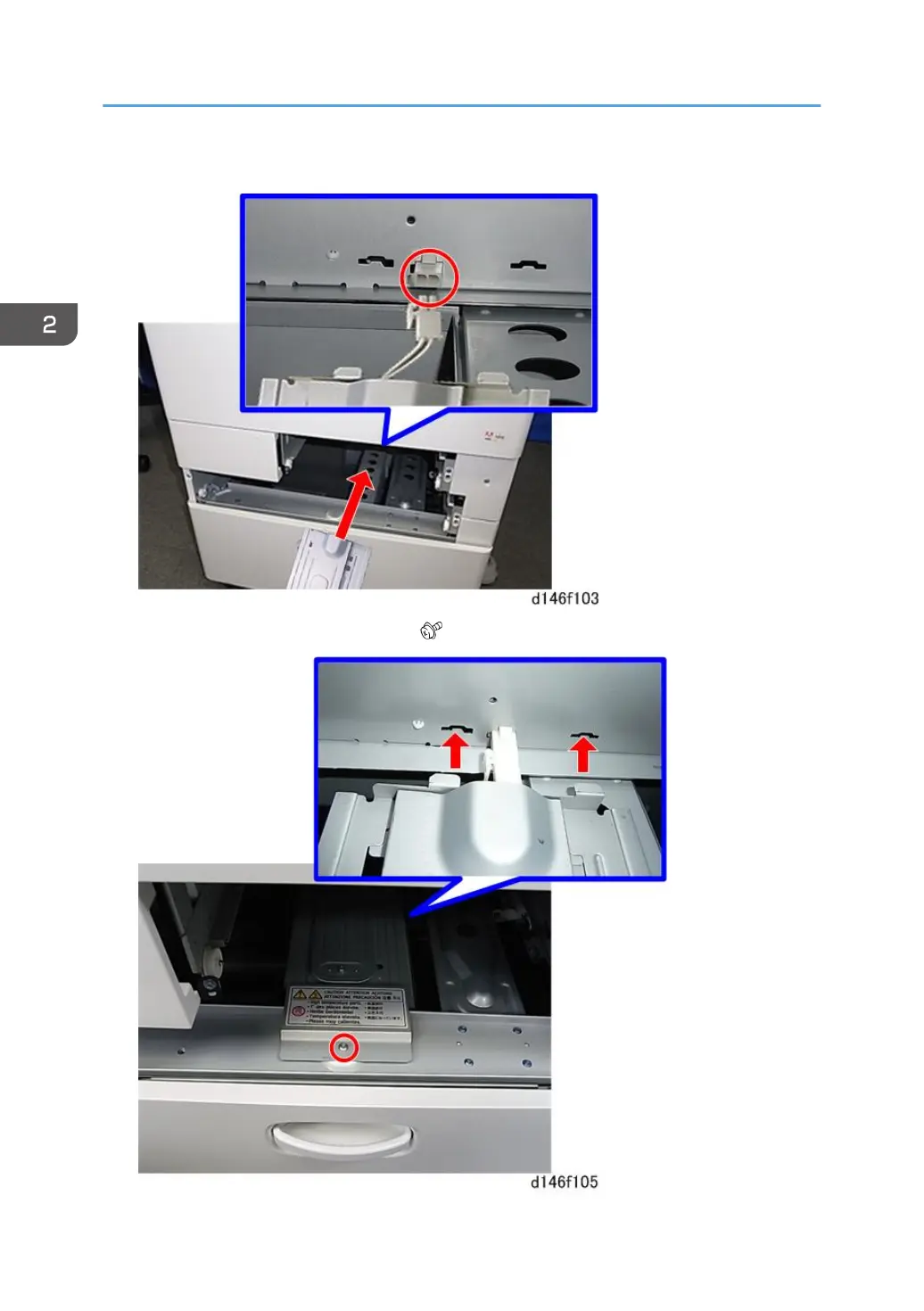

9. Connect the connector of the heater to the main machine.

10. Install the heater inside the machine ( x 1).

2. Installation

132
