Ricoh MP C3004 - Page 166

To Next Page

To Previous Page

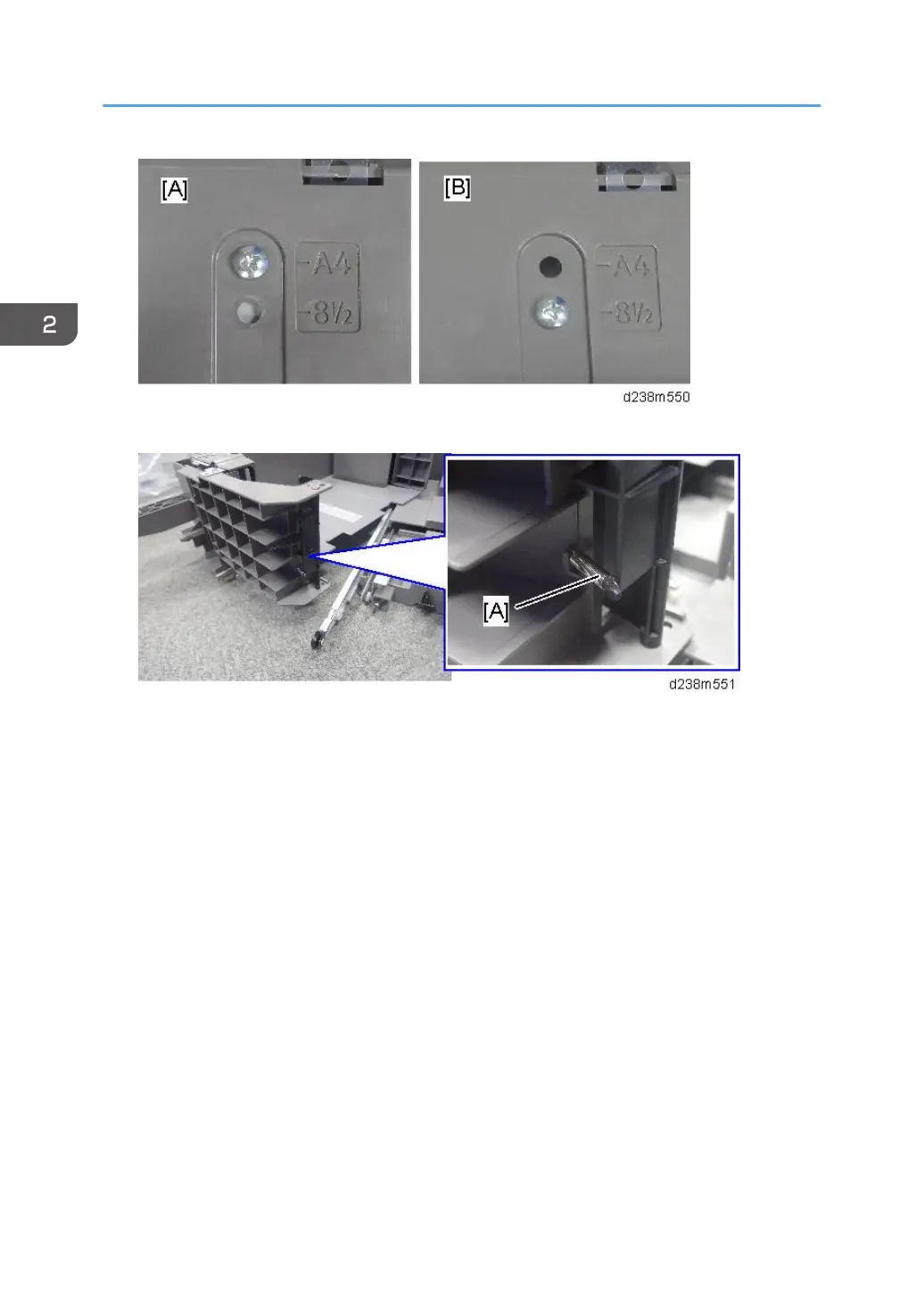

5. Make sure that the spring [A] is attached.

6. Specify the following SP to set the paper size of the tandem paper tray.

SP5-181-007 (Size Adjust: TRAY 3/T-LCT: 1)

0: A4 LEF

1: LT LEF

2. Installation

158
