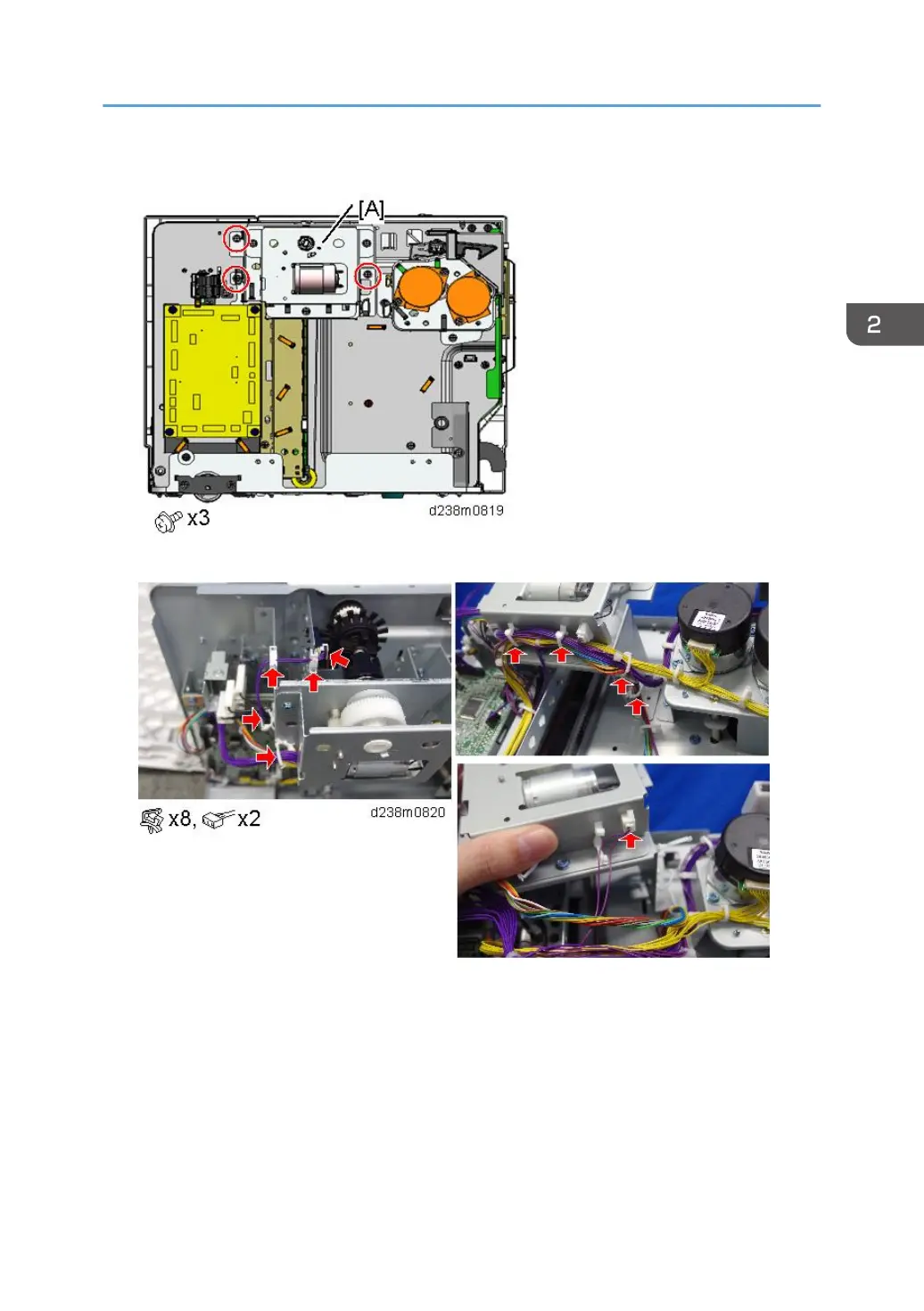

3. Remove the lift motor bracket [A].

4. Remove the harness and connector for the lift motor bracket.

LCIT RT3030 (D696)

171
