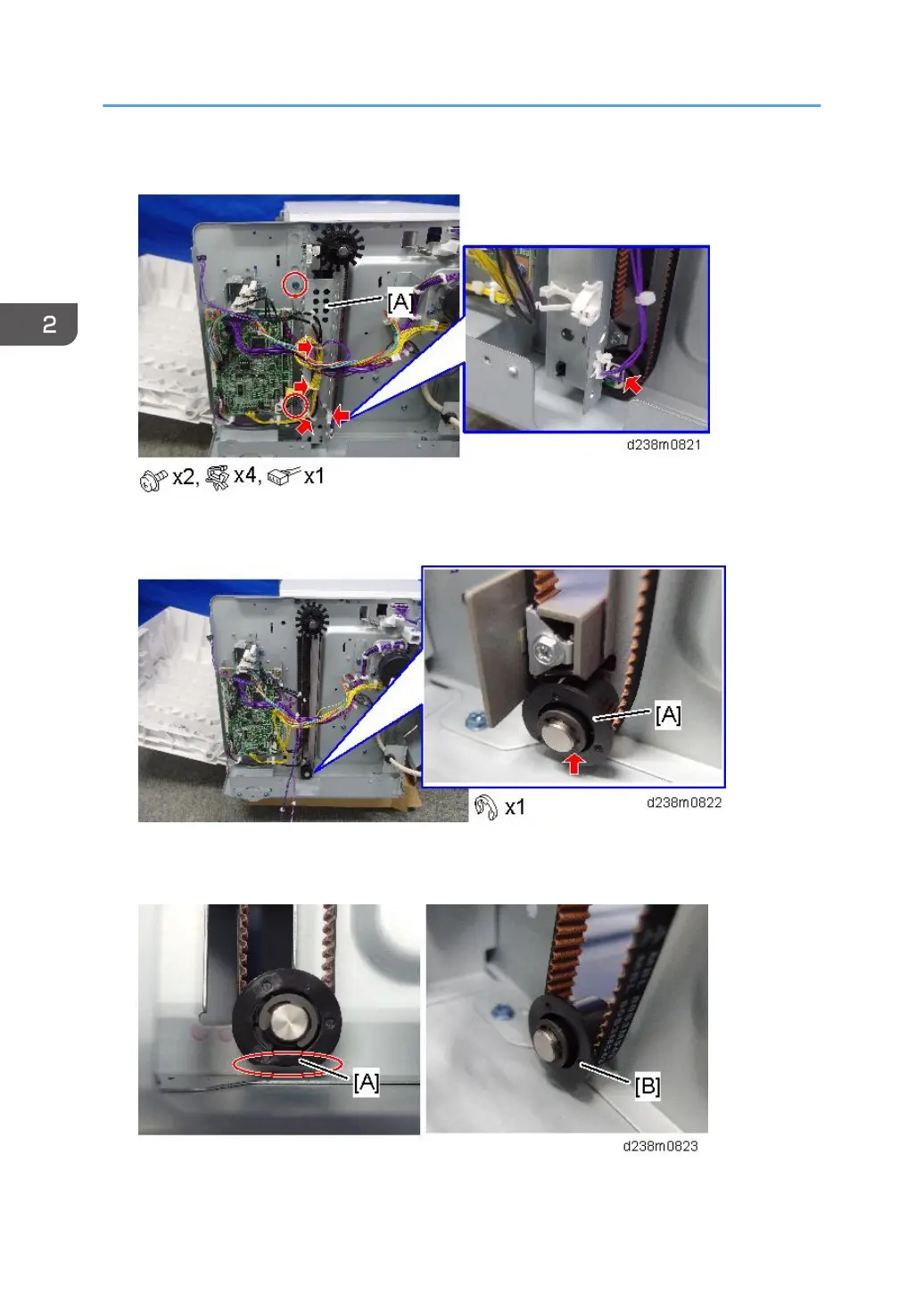

5. Remove the bracket for the remaining paper sensor [A].
6. Remove the rear belt pulley [A] and replace it with the part for increasing the LCIT
capacity.
• To prevent interference with the frame, attach the part with the cut surface [A] facing down.
• Attach the part with the flange-side [B] facing out.
2. Installation
