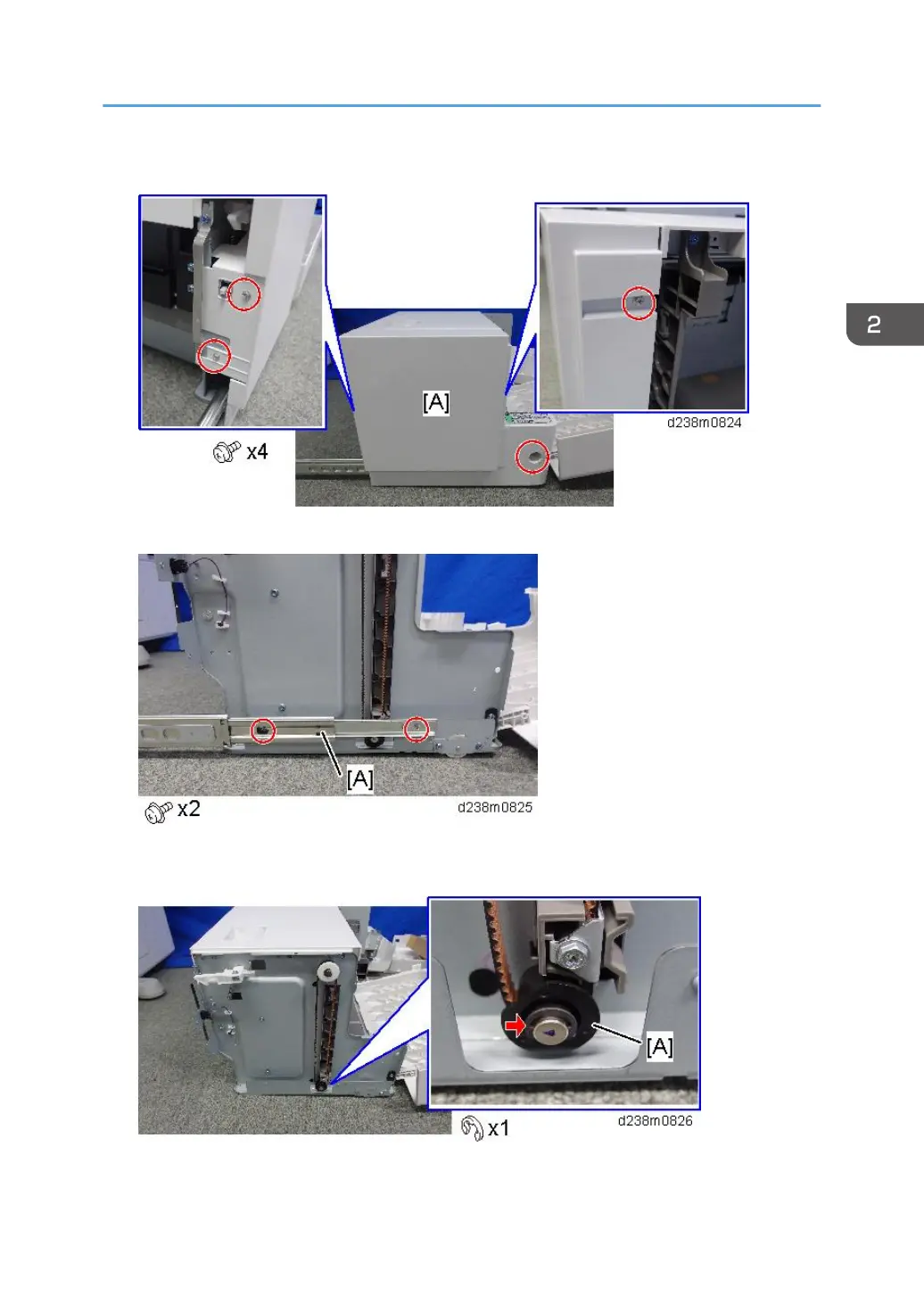

7. Remove the front cover [A].
8. Remove the front slide rail [A].
9. Remove the front belt pulley [A] and replace it with the part for increasing the LCIT
capacity.
• To prevent interference with the frame, attach the part with the cut surface [A] facing down.
LCIT RT3030 (D696)
173
