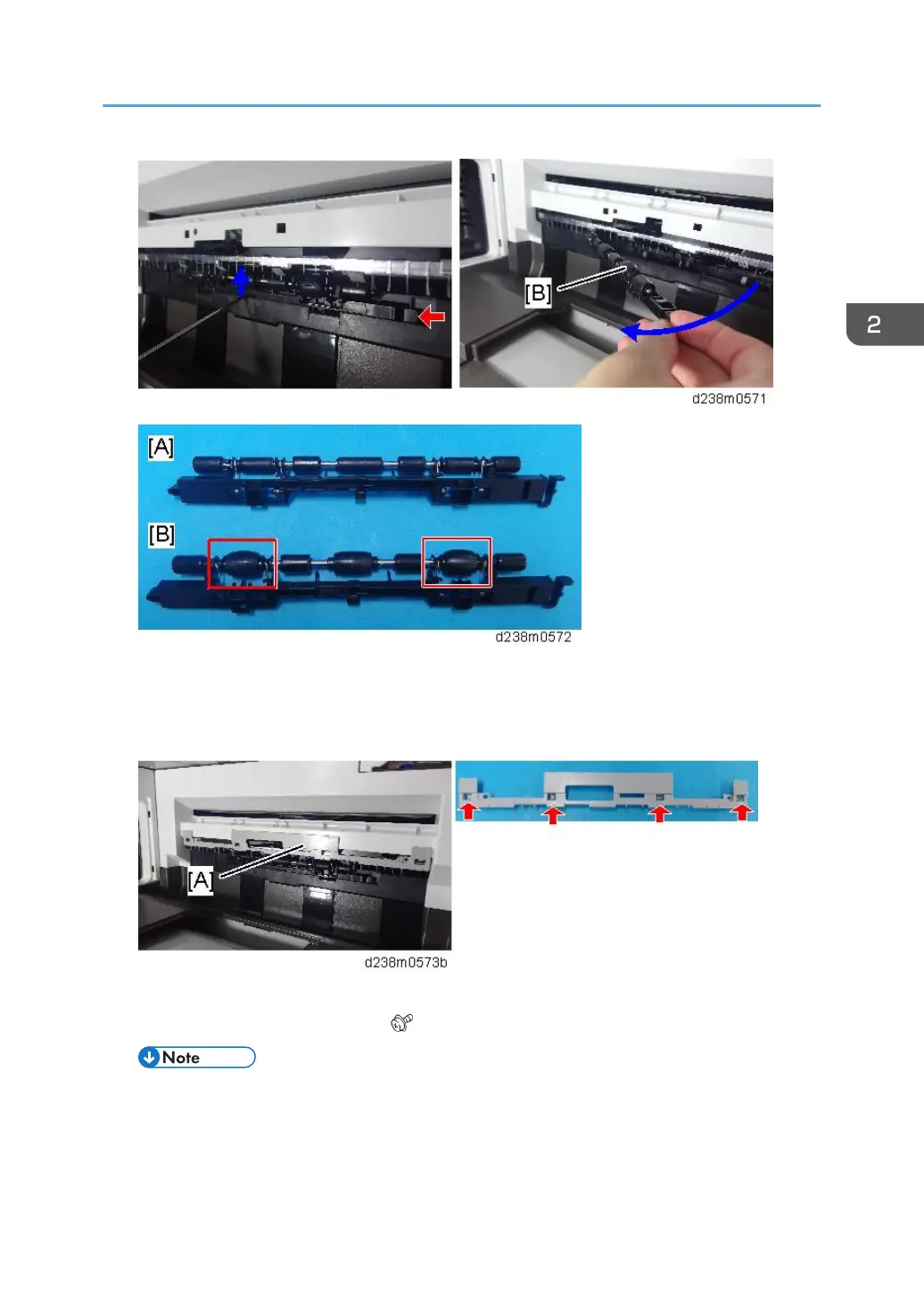

[A]: The supplied driven roller has flat rollers.
[B]: The machine’s standard driven roller has drum-type rollers (as indicated by red frames).
7. Attach the paper support guide [A] (Tab x4 ).
8. Open the front cover.
9. Remove the upper left cover [A] ( ×1).
• The screw removed is used again in step 16.
Bridge Unit BU3070 (D685)
229
To Next Page
