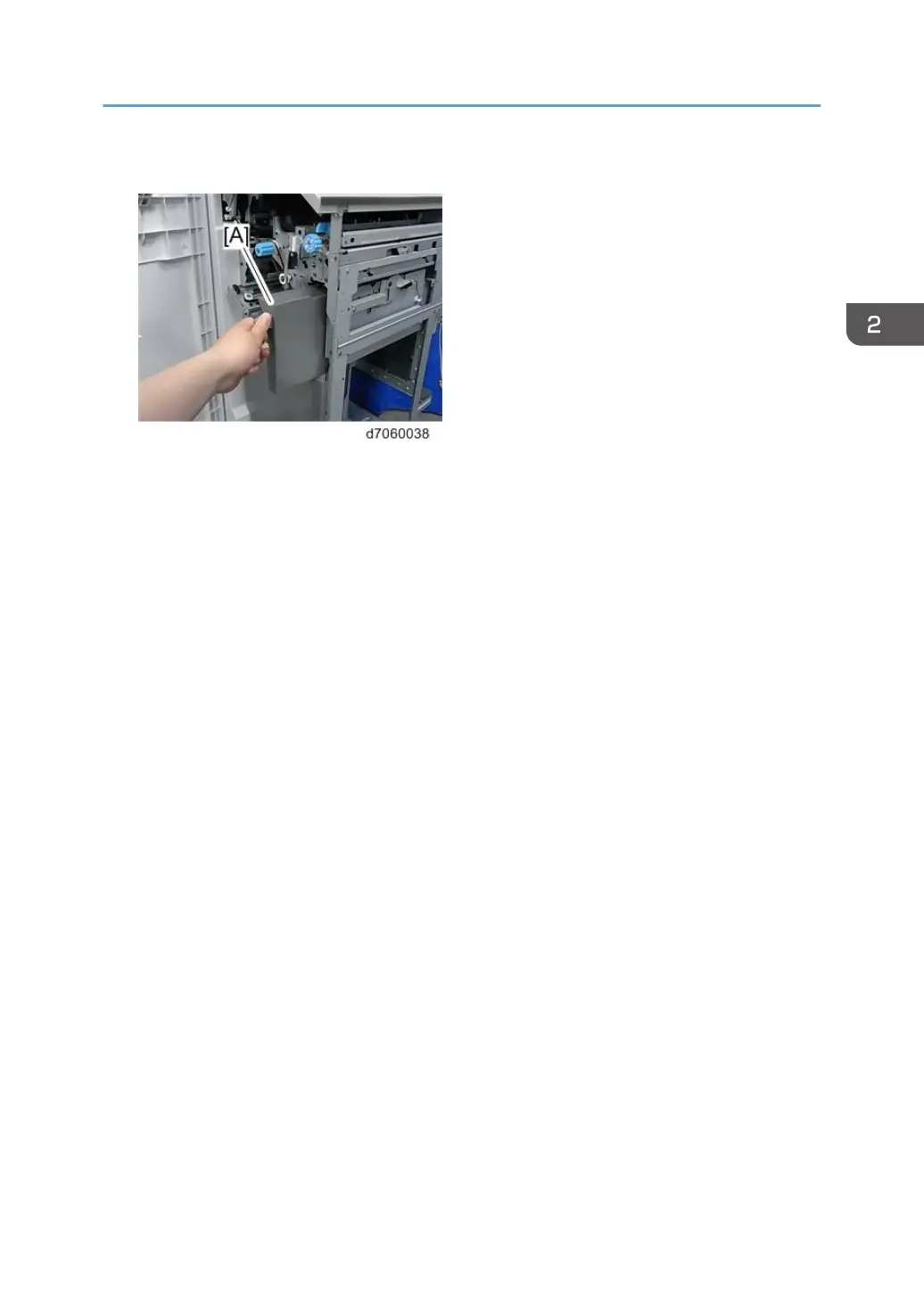

20. Attach the hopper [A].

21. Attach the rear upper cover, the rear lower cover, the inner cover, and the punch guide

plate.

Punch Unit PU3060 (D706)

259
