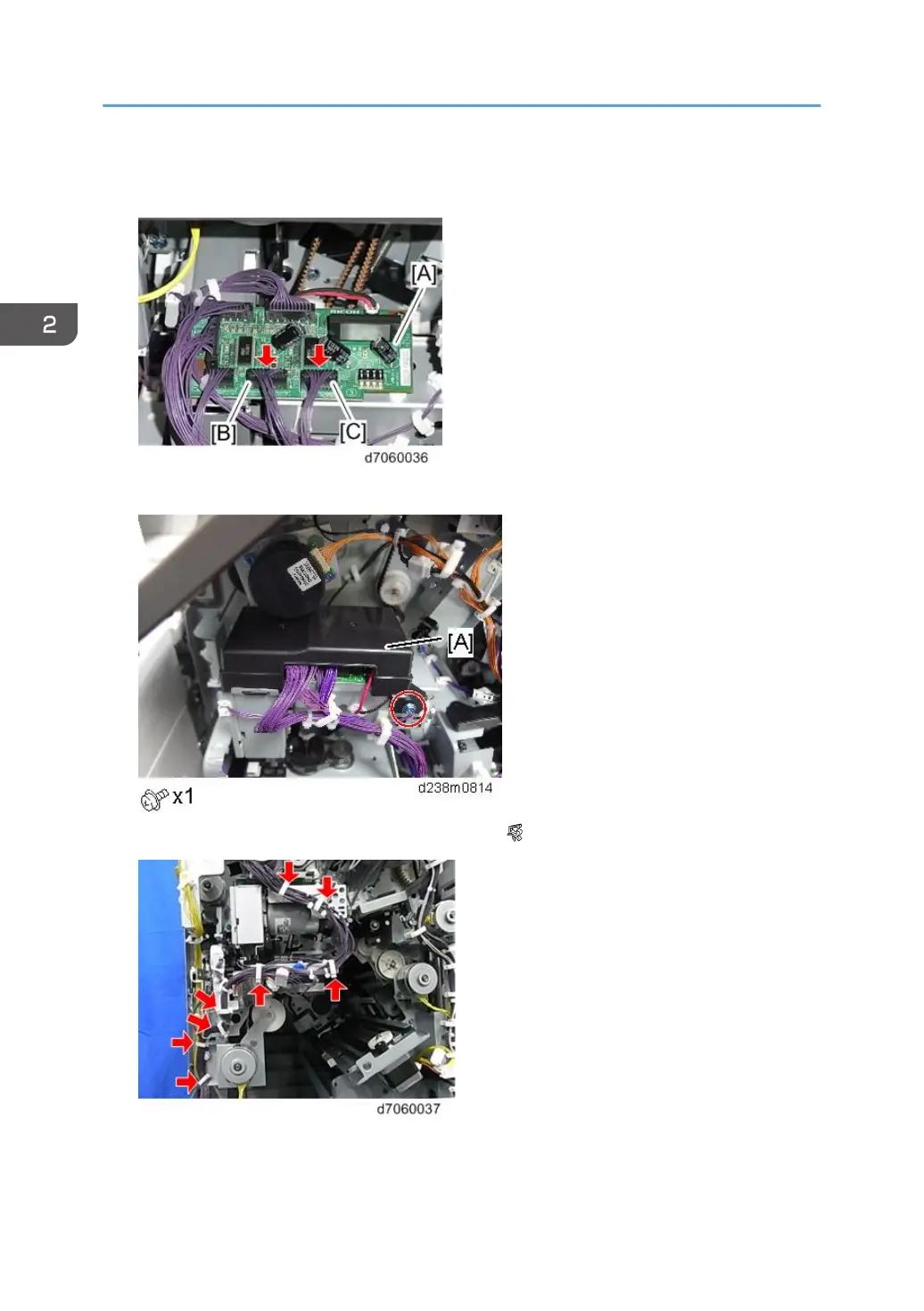

17. Connect the harness [B] of the punch unit movement motor unit and the harness [C] of the

side-to-side detection unit to the punch unit board [A].

18. Attach the supplied cover [A] to the punch unit board.

19. Fix all the harnesses of the punch unit PU3060. ( ×8)

2. Installation

258
