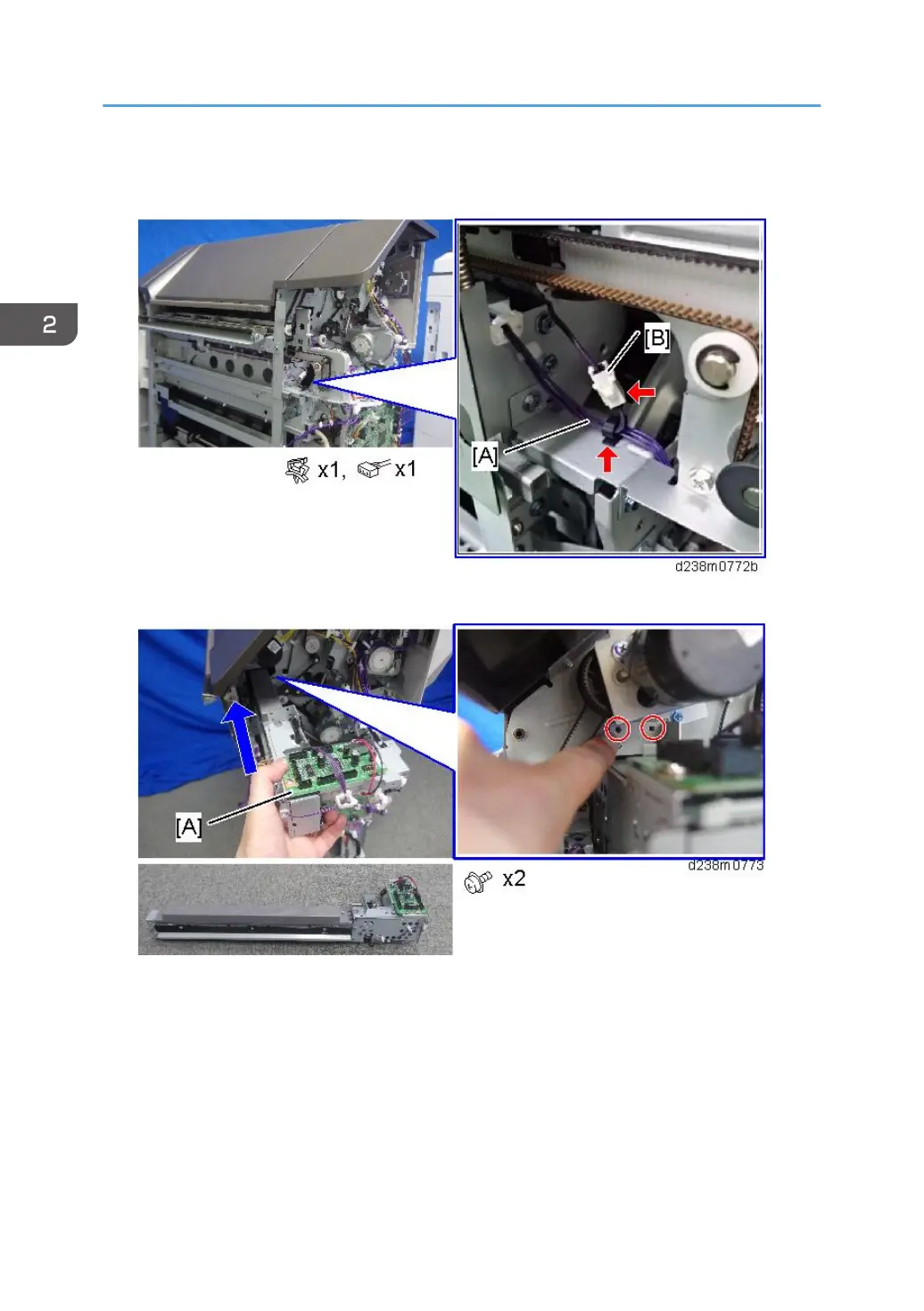

14. Connect the harness [A] of the hopper guide plate to the relay connector [B] of the side-

to-side detection unit, and then clamp the harness.

15. Insert and attach the punch unit [A] from the rear.
