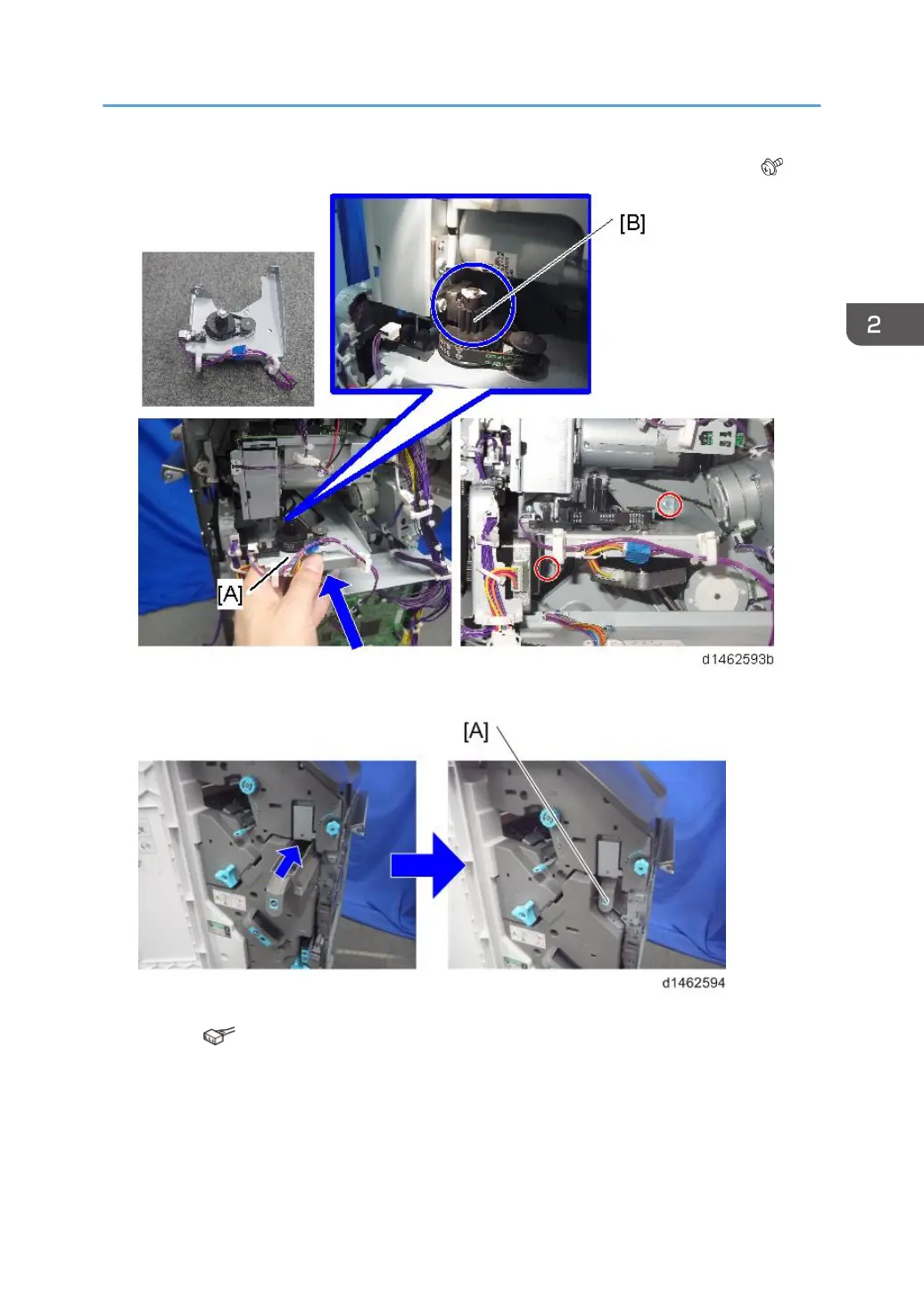

16. Attach the punch unit movement motor unit [A] so that the gear [B] meshes firmly ( ×2).
17. Insert the hopper [A].
18. Connect the provided harness to the punch unit board [A] and the control board [B] of the
finisher ( ×6).
Use Harness (short) for SR3220 and Harness (long) for SR3210.
