Ricoh MP C3004 - Page 300

To Next Page

To Previous Page

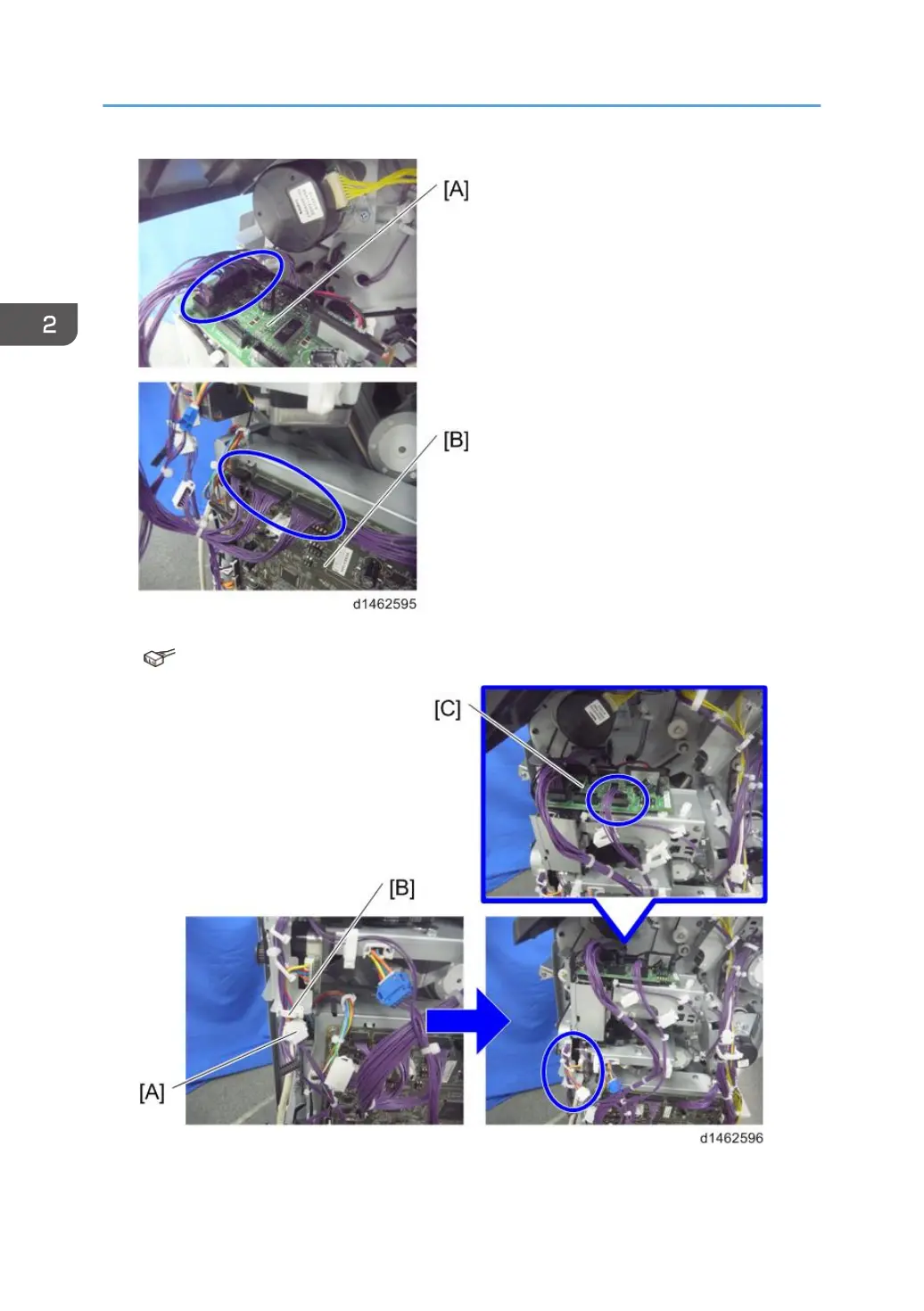

19. Remove the harness [A] from the clamp [B], and connect it to the punch unit board [C]

( ×1).

2. Installation

292
