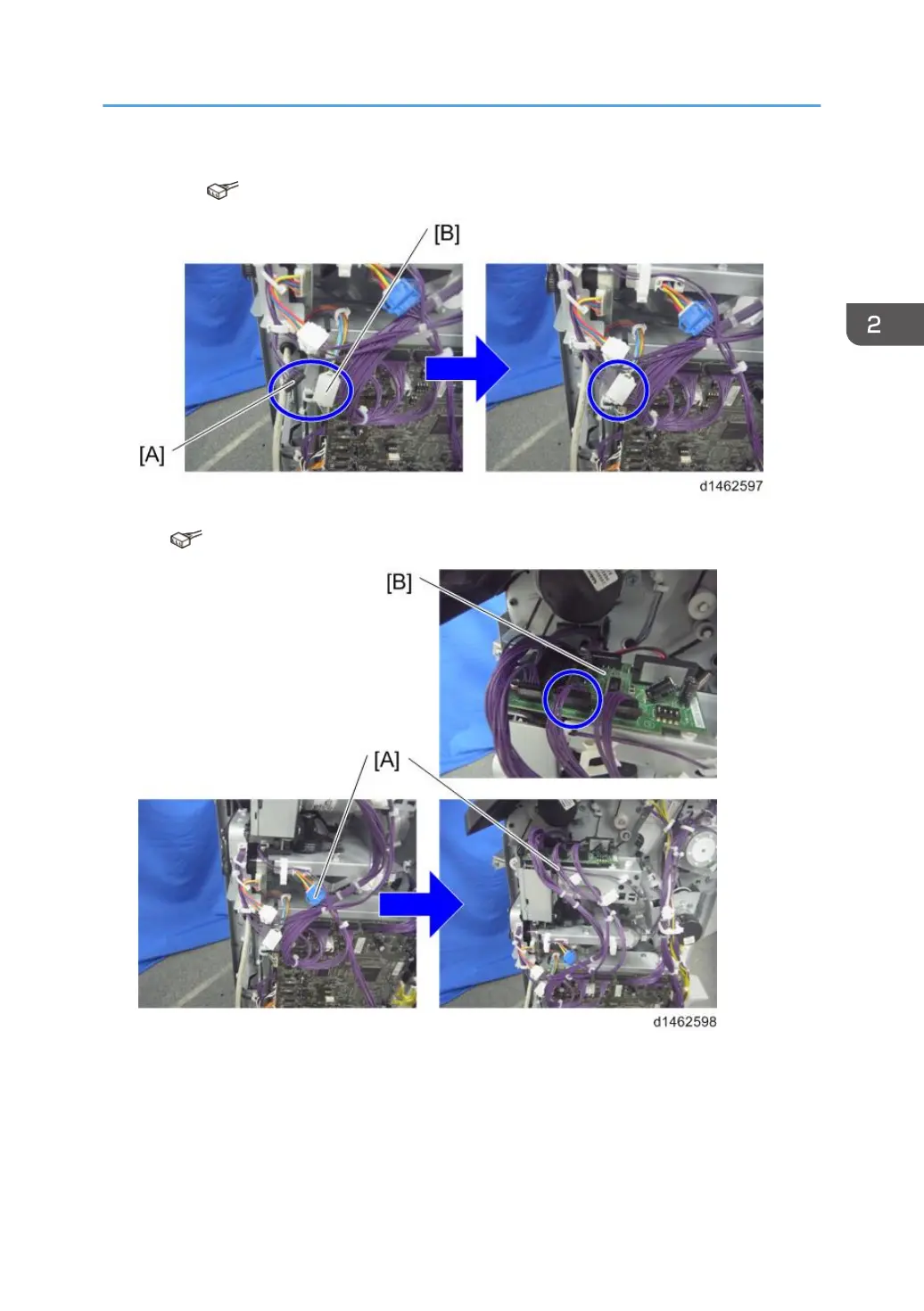

20. Connect the harness [A] of the side-to-side detection unit to the relay connector [B] of the

harness ( ×1).

21. Connect the harness [A] of the punch unit movement motor unit to the punch unit board

[B] ( ×1).
