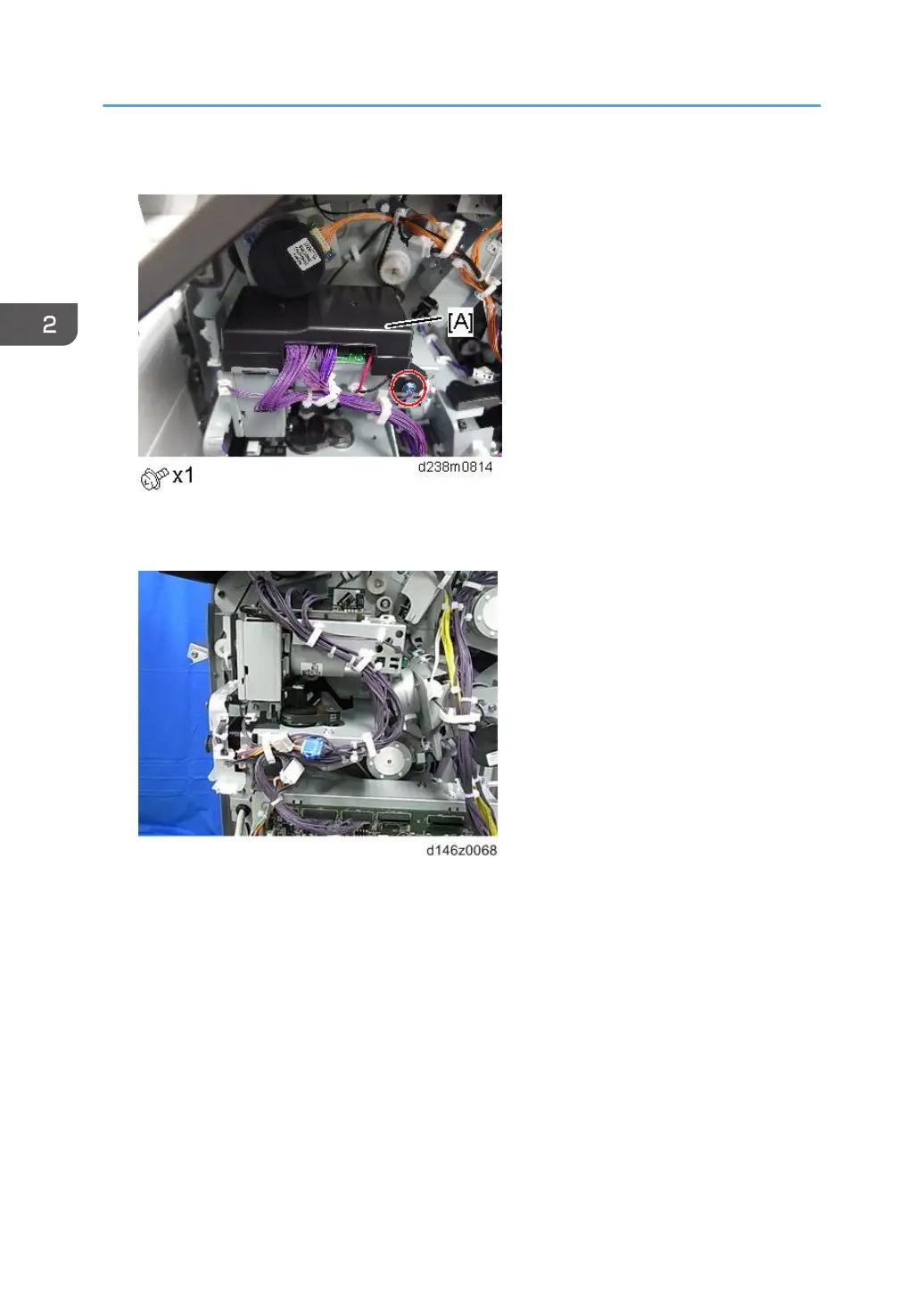

22. Attach the supplied cover [A] to the punch unit board.

23. Clamp the harnesses.

For SR3220

For SR3210

2. Installation

294
