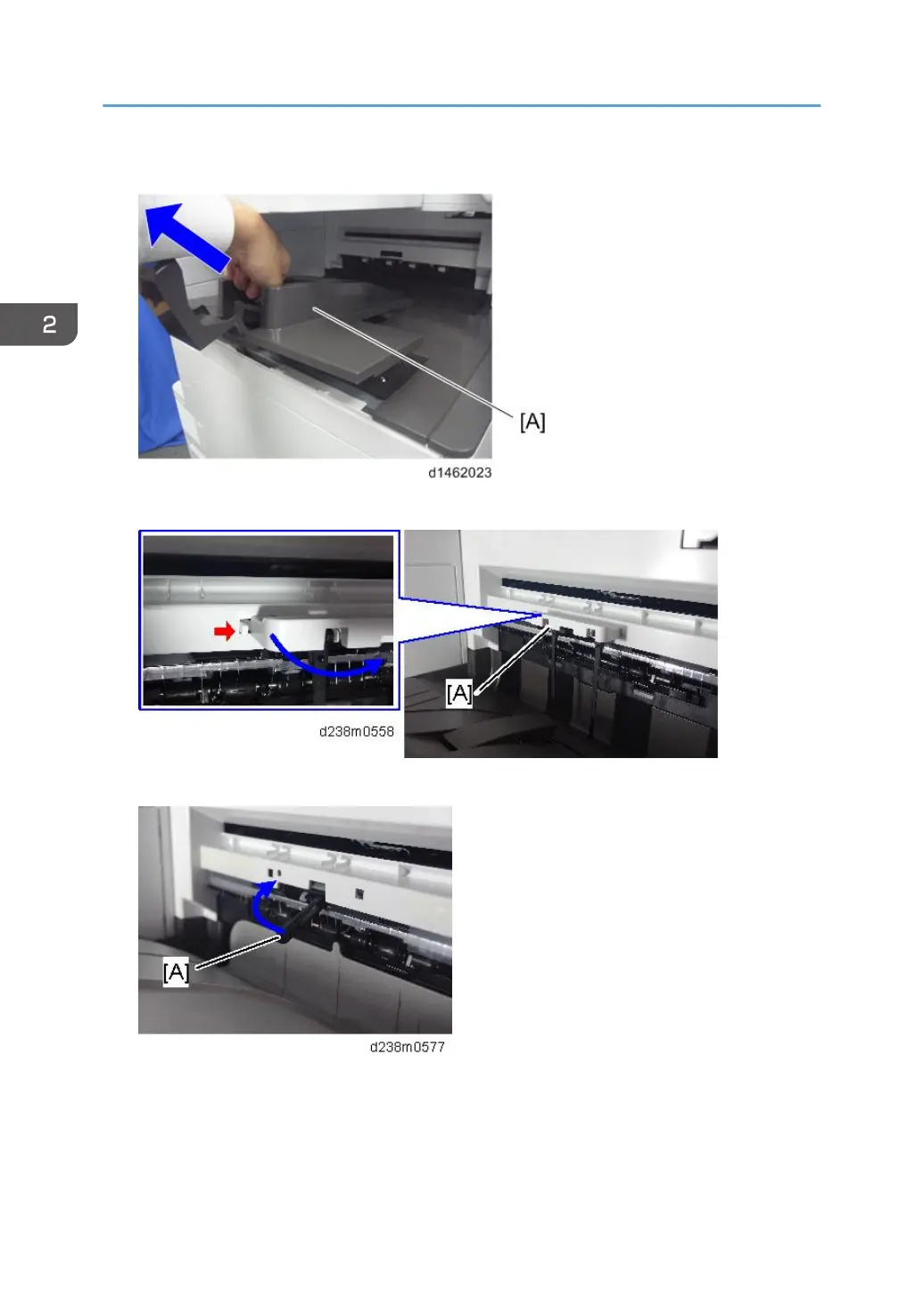

3. Remove the paper exit tray [A].

4. Remove the paper exit feeler [A].

5. Tuck in the lever [A] for detecting when the tray is full.

2. Installation
