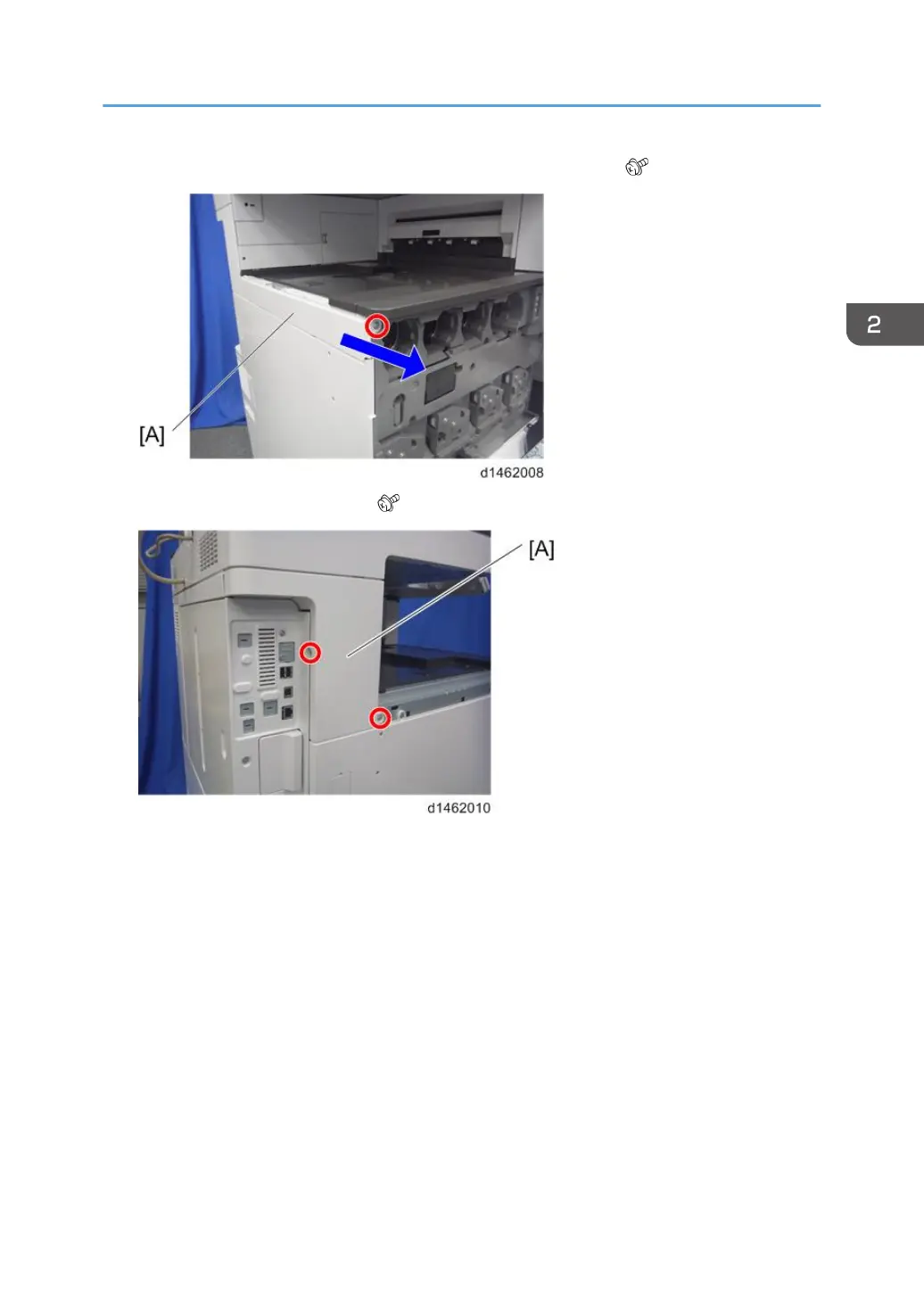

6. Open the front cover, and then remove the upper left cover [A] ( ×1).

7. Remove the left rear cover [A] ( ×2).

Internal Finisher SR3130 (D690)

299
