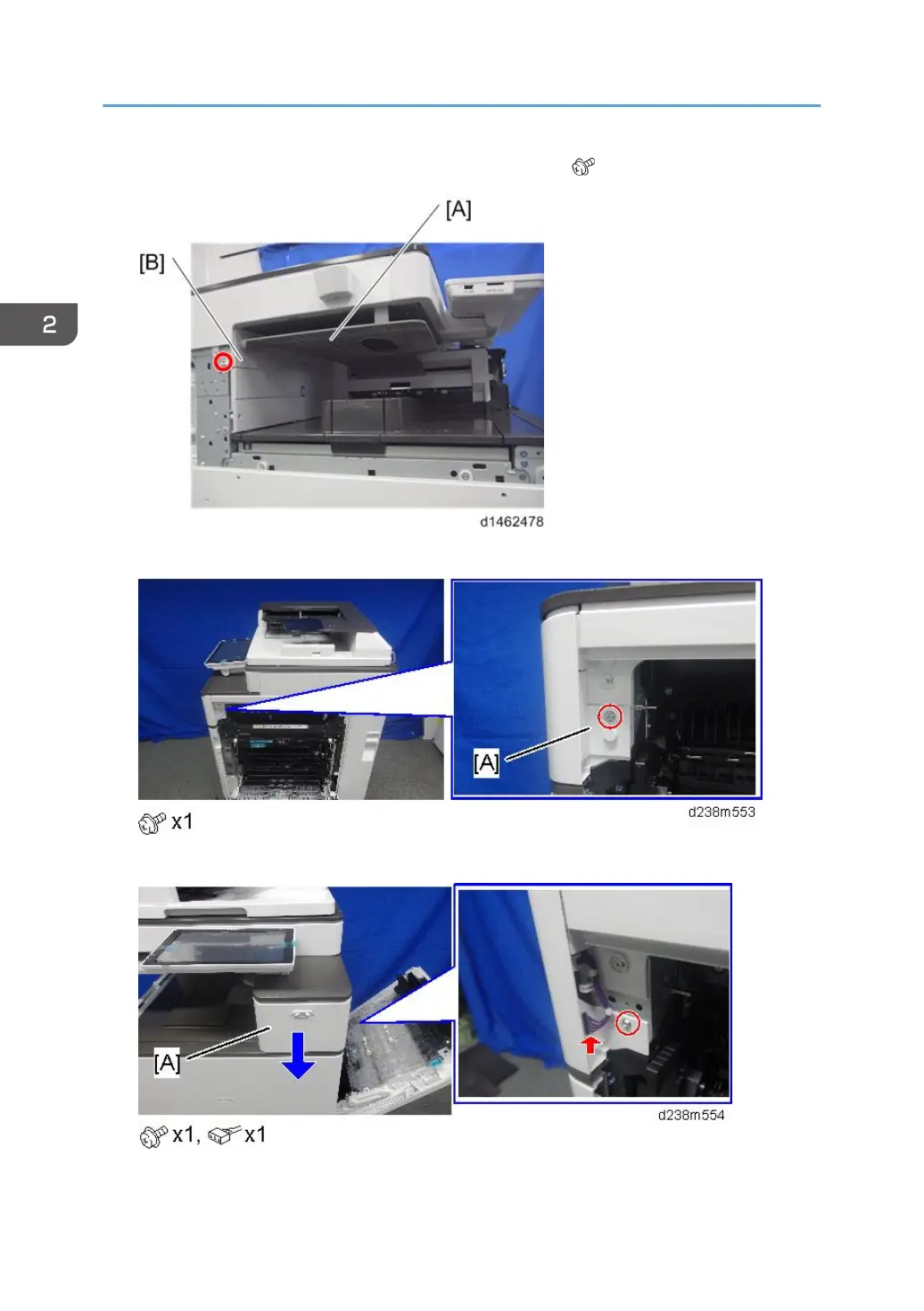

8. Remove the inverter tray [A], and tray support plate [B] ( ×1).

9. Open the right door, and then remove the small cover [A].

10. Remove the proximity sensor cover [A].

2. Installation

300
