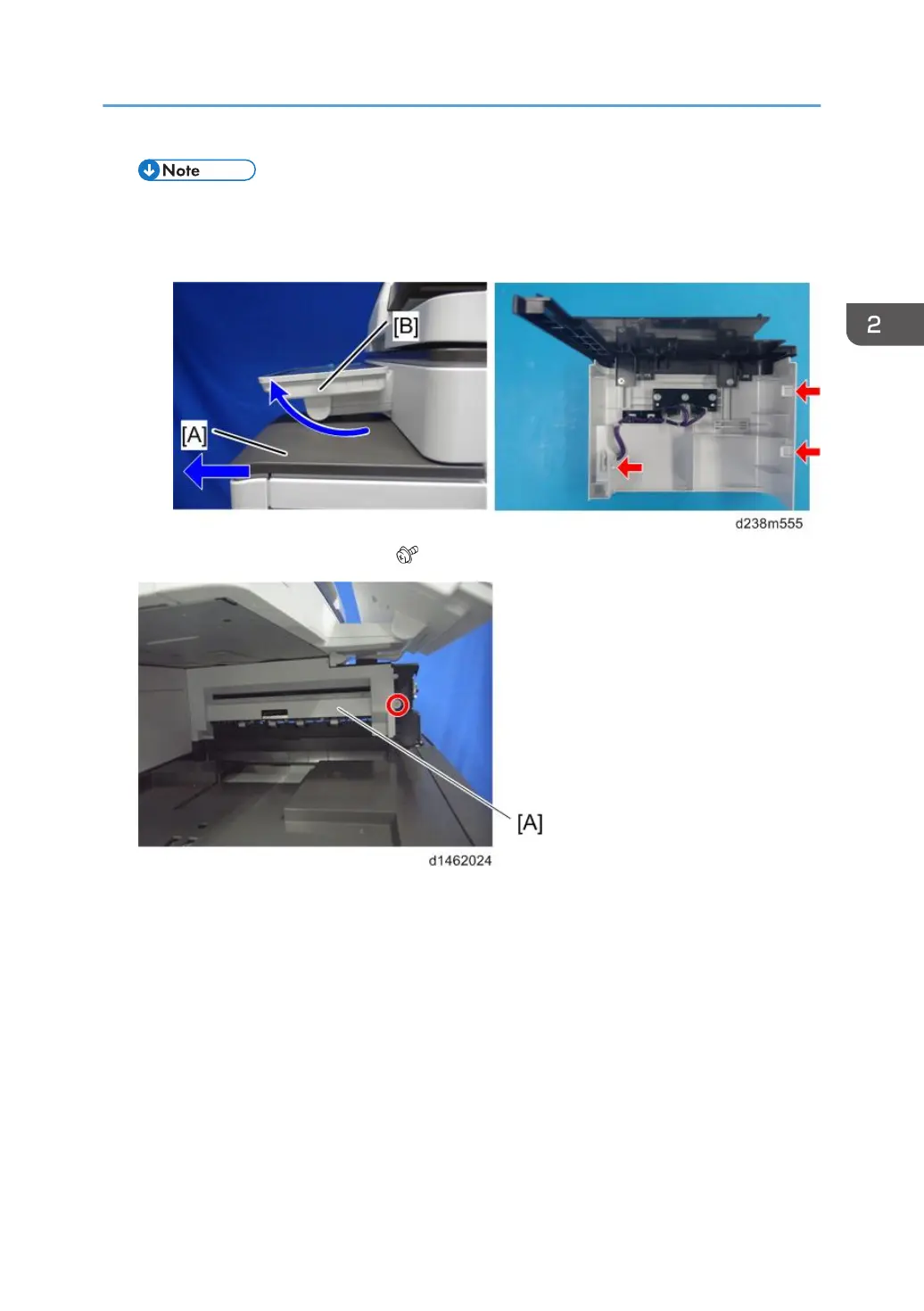

• Remember that there are three tabs at the positions in the red arrows.
• Tilt the operation panel [B] upward to a horizontal position, and then remove the proximity
sensor cover [A].
11. Remove the paper exit cover [A] ( ×1).
Internal Finisher SR3130 (D690)
301
