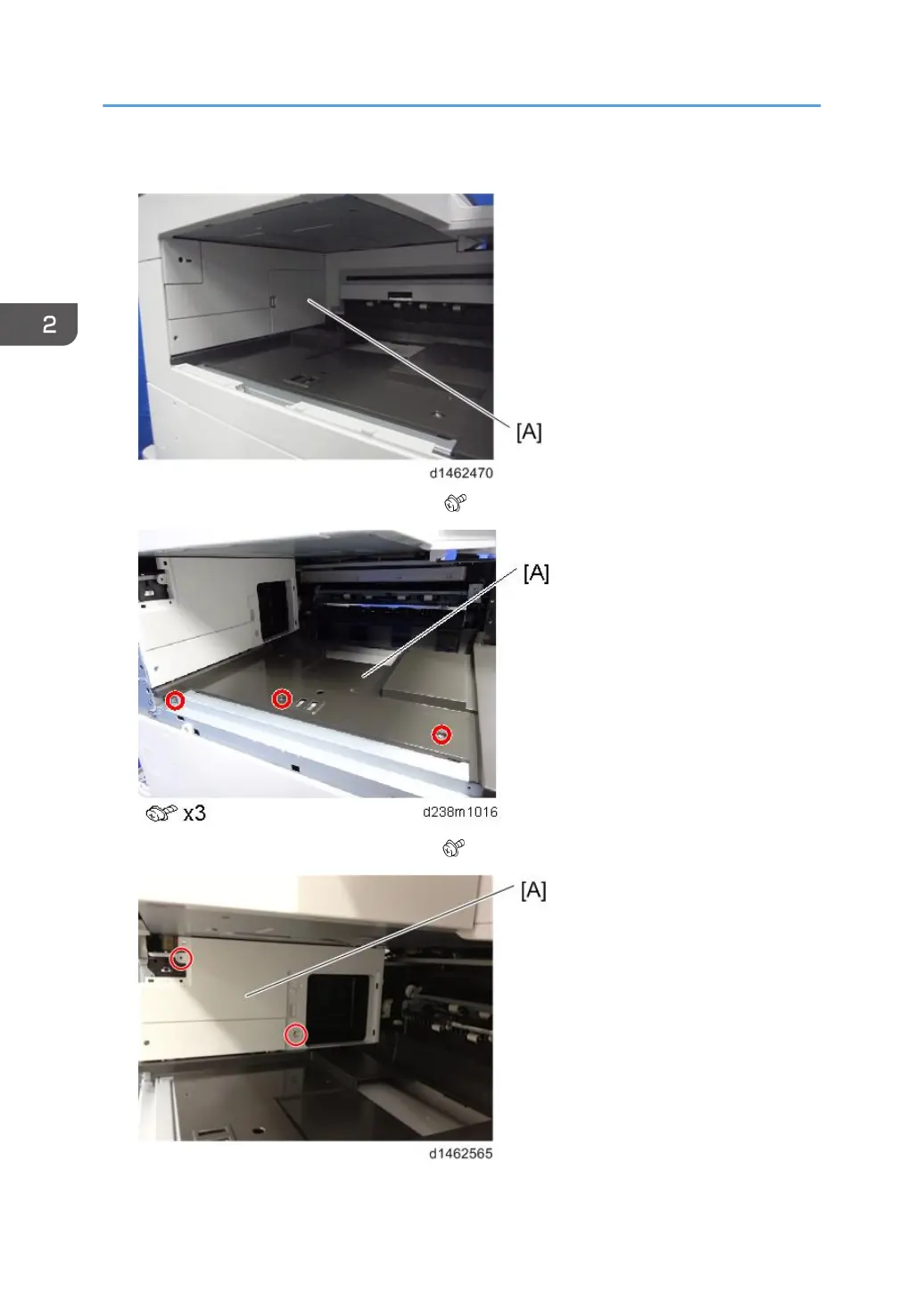

12. Remove the connector cover [A].

13. Remove the paper exit lower cover [A] ( ×3).

14. Remove the upper rear inner cover [A] ( ×2)
