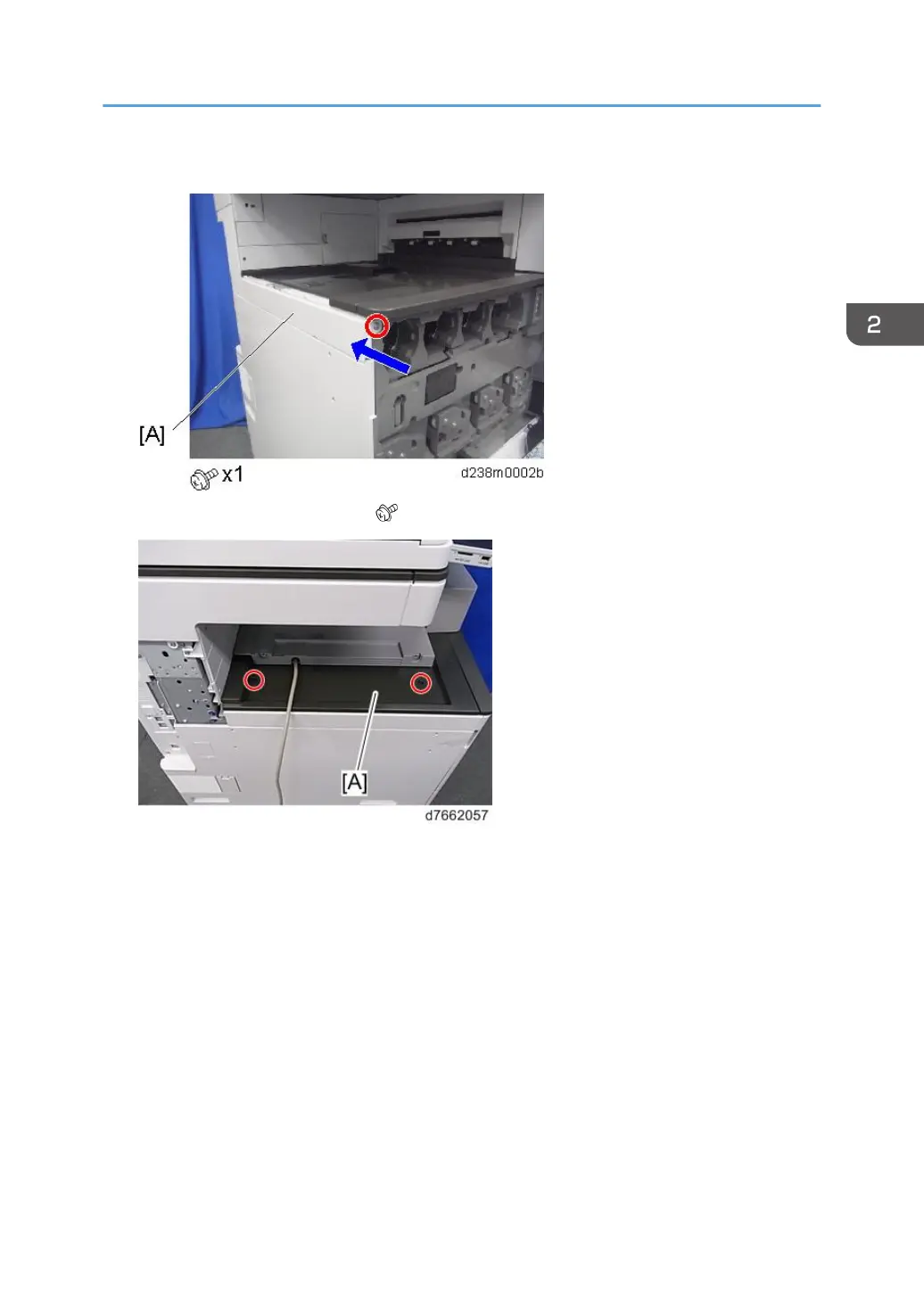

33. Reattach the left upper cover [A].

34. Attach the left lower cover [A] ( x 2, Accessory No.6).

Internal Finisher SR3180 (D766)

333
