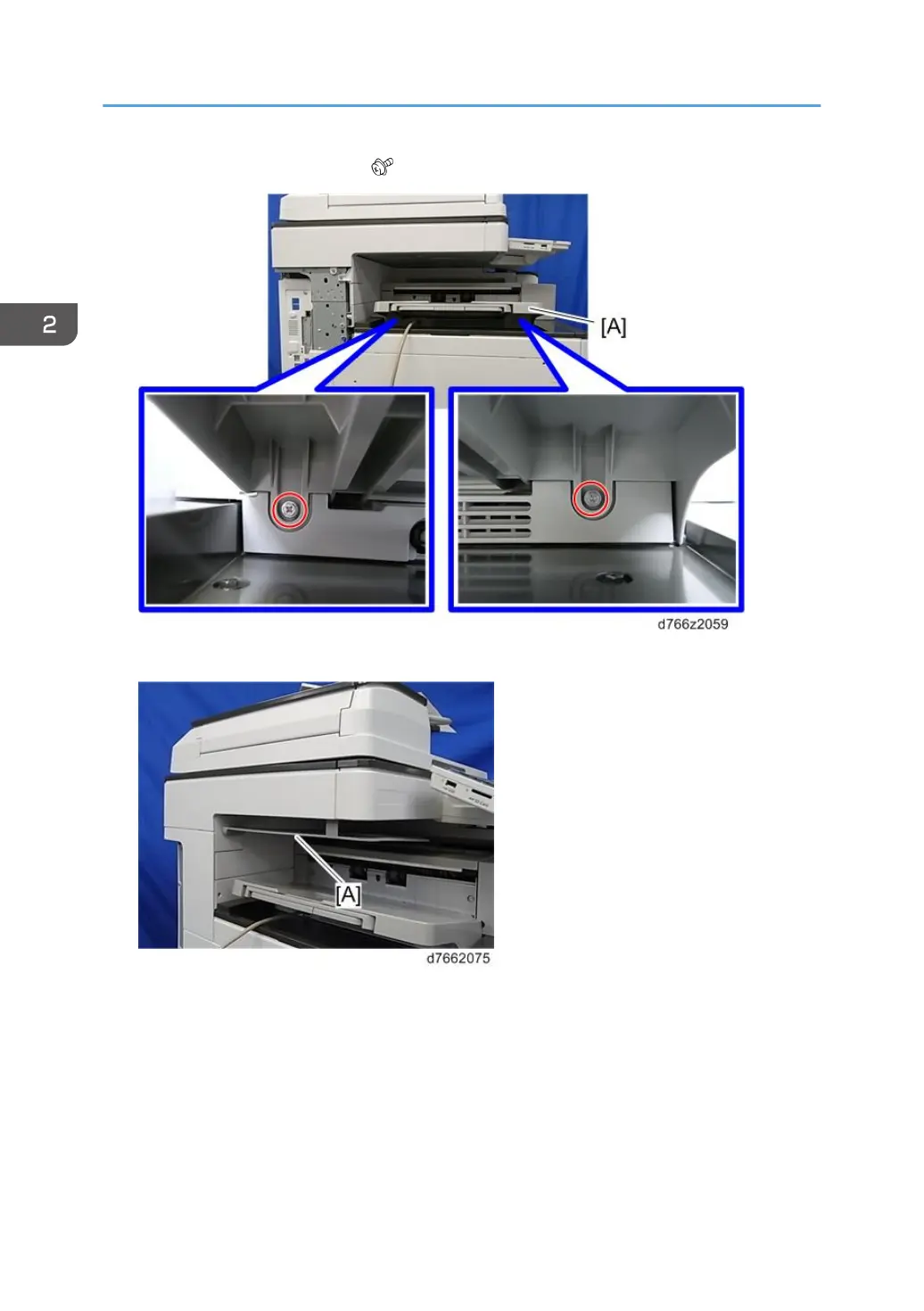

35. Attach the paper exit tray [A] ( x 2, Accessory No.4).

36. Reattach the inverter tray [A] removed in step 13.
