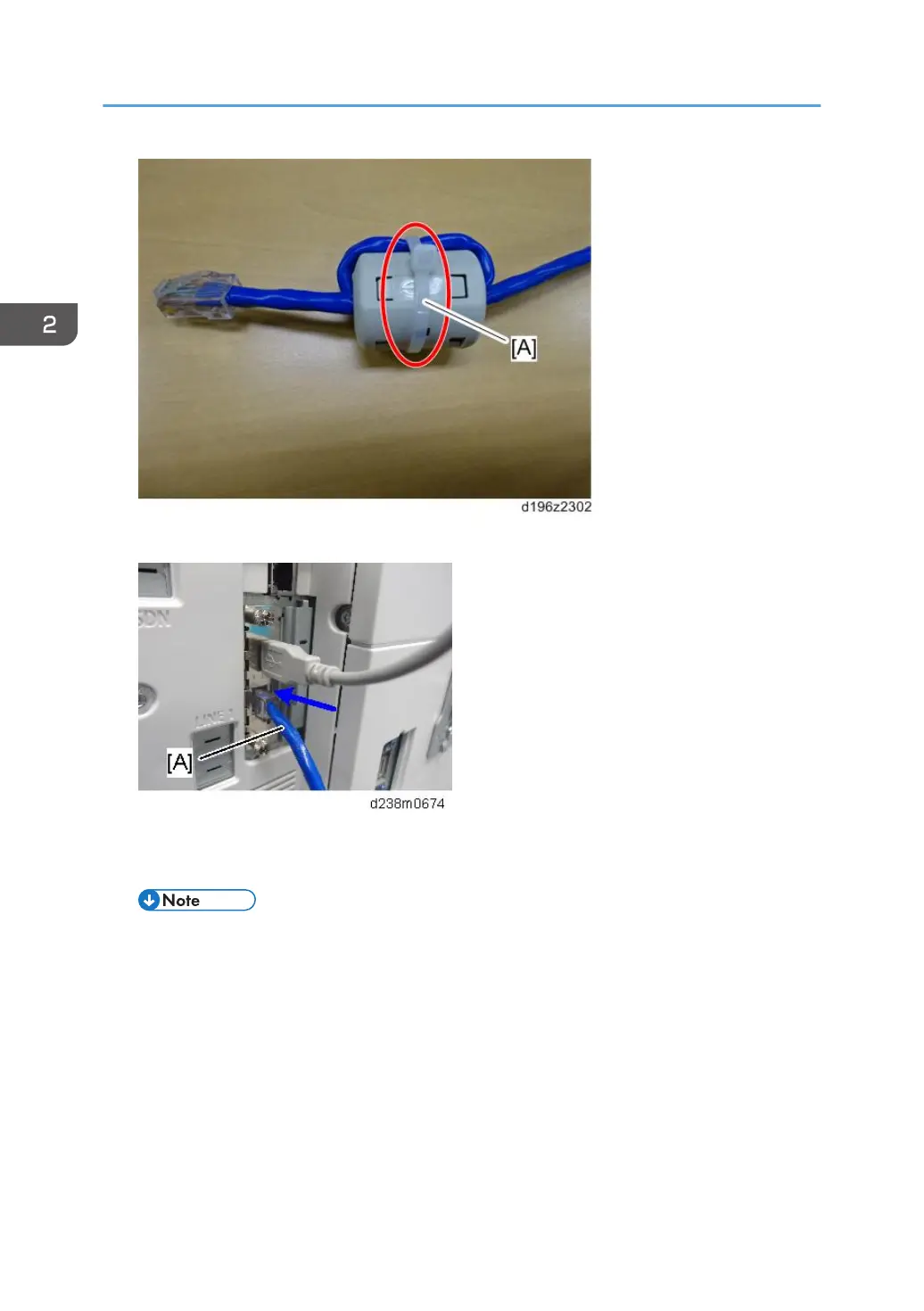

11. Insert the Ethernet cable [A] into the Ethernet port on this option.
12. Insert the other end of the Ethernet cable to a PC for network setting.
13. Plug the power cord into the wall socket and turn on the main power of the machine.
• Do not unplug the USB cable while the machine is recognizing this option. It may take
between 30 seconds to 1 minute to finish recognizing it (the LEDs on the Ethernet port of this
option light up after recognizing this option; see below). If unplugged, connect the cable
again.
14. Make sure that the machine recognizes this option correctly by doing one of the
following:
1. Access the option’s IP address from a web browser.
2. Ping the option’s IP address from a command prompt on a Windows PC in the same network
as the mainframe.
