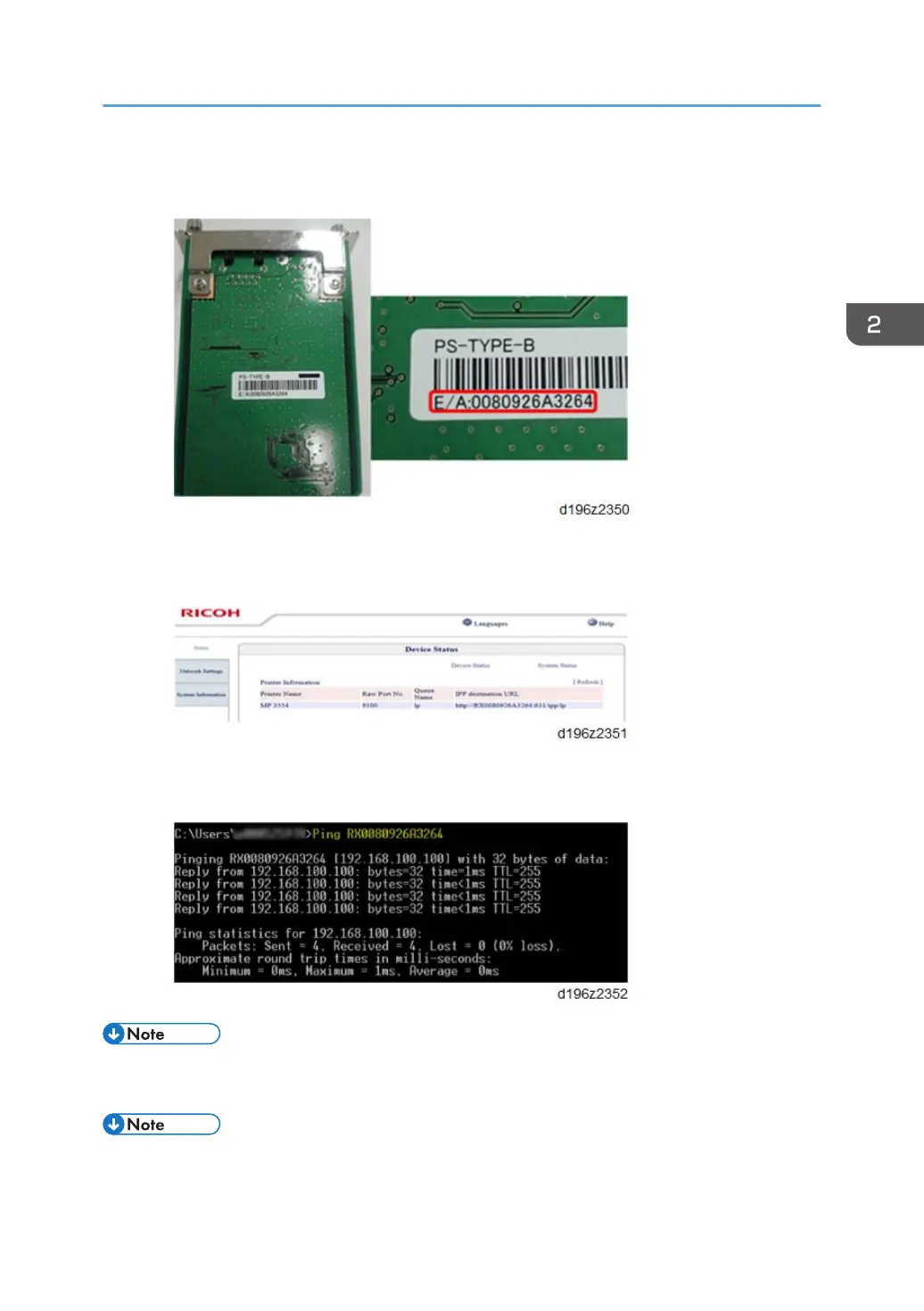

If the IP address cannot be found (DHCP server), use the MAC address. This is the number
printed on the seal attached to the printed circuit board for the USB server.
3. Use "RX" + the option’s MAC address and access a web browser.
Example: http://RX0080926A3264
4. Ping "RX" + "MAC address" from the command prompt on a windows PC which is on the same
network as the mainframe.
• When installing the USB Device Server Option Type M19, the installation status is not shown on the
Configuration Page.
• The customer should keep the slot covers which were removed.
USB Device Server Option Type M19 (D3BC-28,-29)
361
