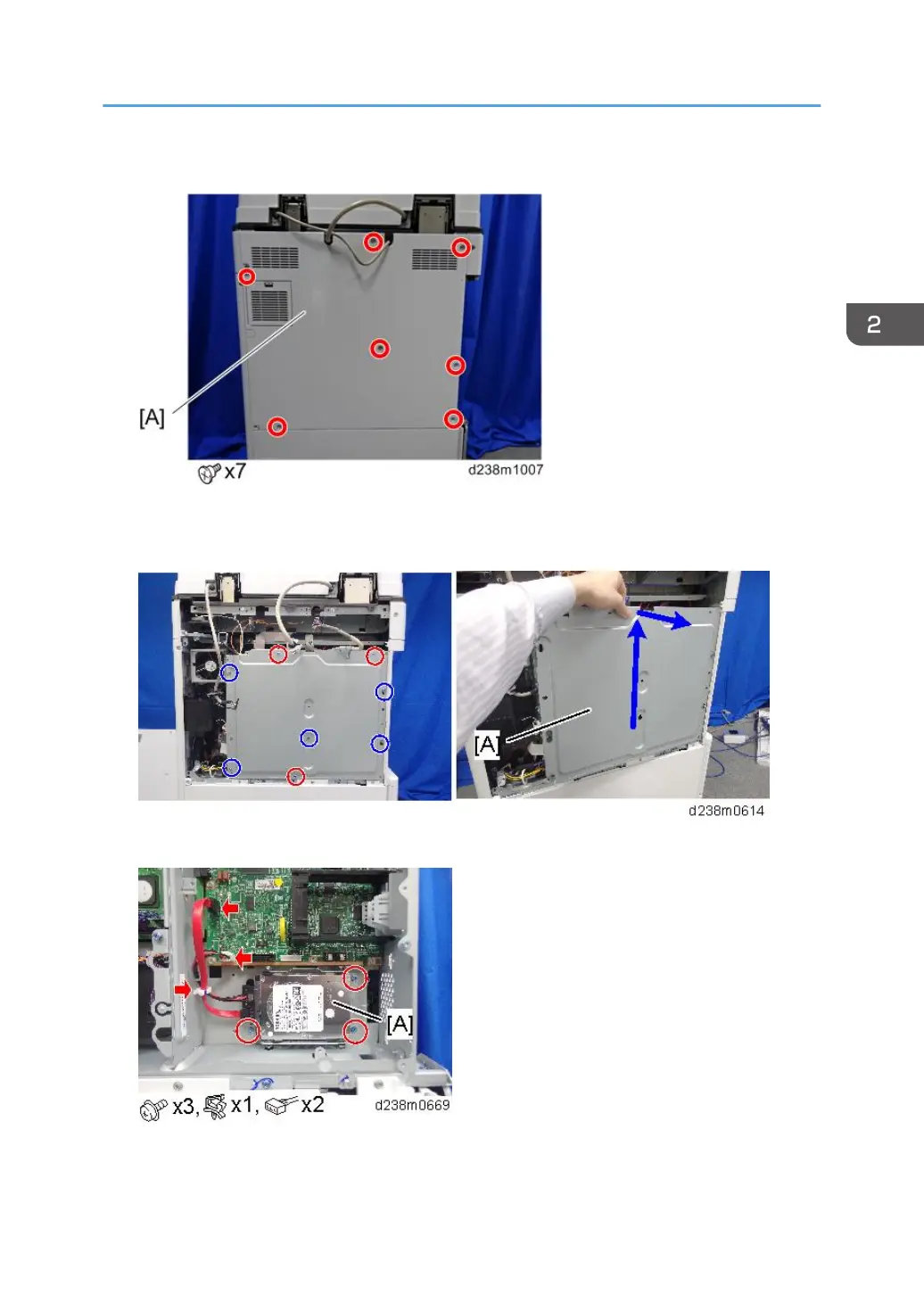

1. Remove the rear cover [A].

2. Remove the controller box cover [A].

Red Circle: Remove / Blue Circle: Loosen

3. Remove the standard HDD [A] installed on the machine.
