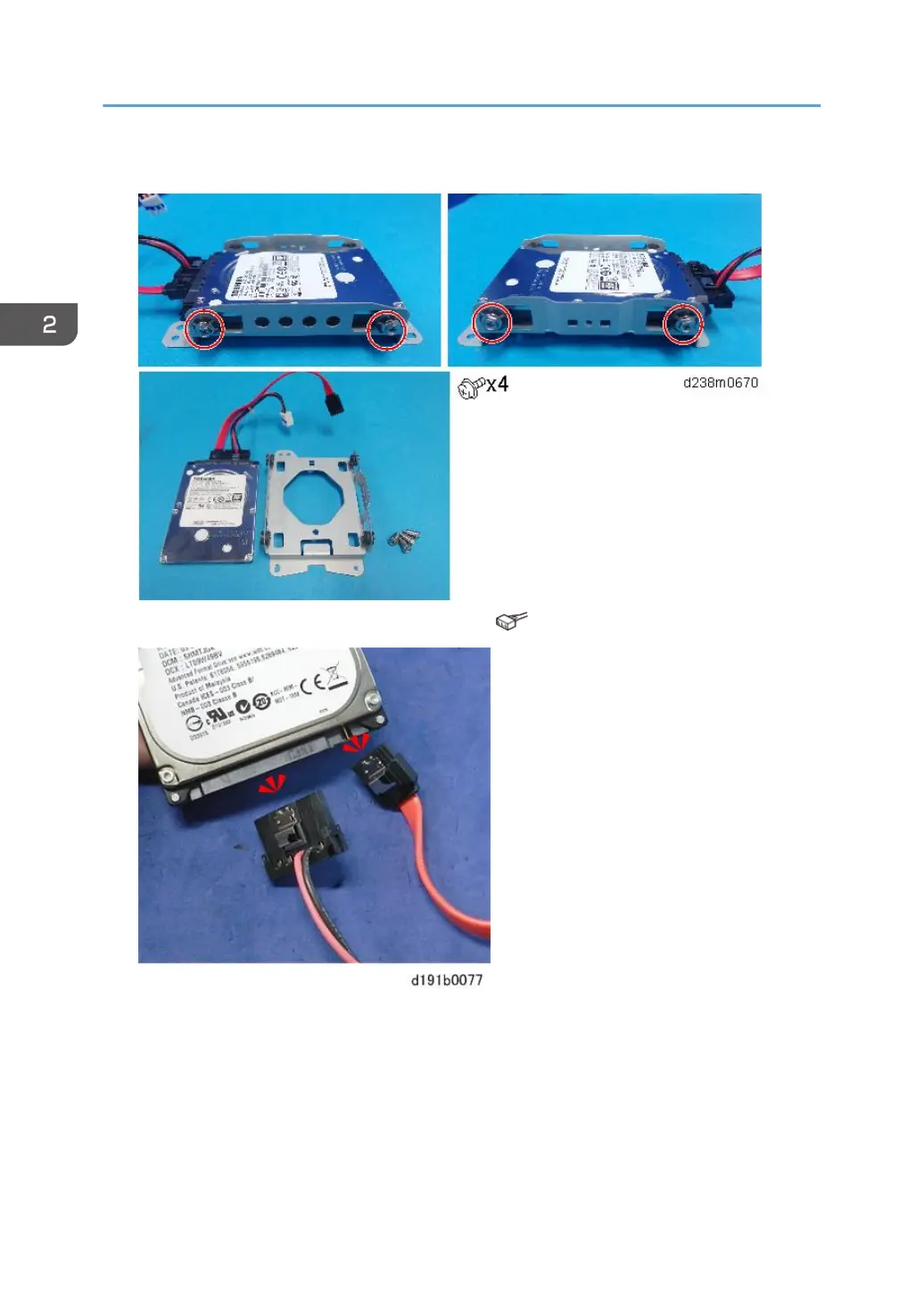

4. Separate the standard HDD from the bracket.

5. Disconnect the cables from the standard HDD. ( × 2)

2. Installation

384
