Ricoh MP C3004 - Page 393

To Next Page

To Previous Page

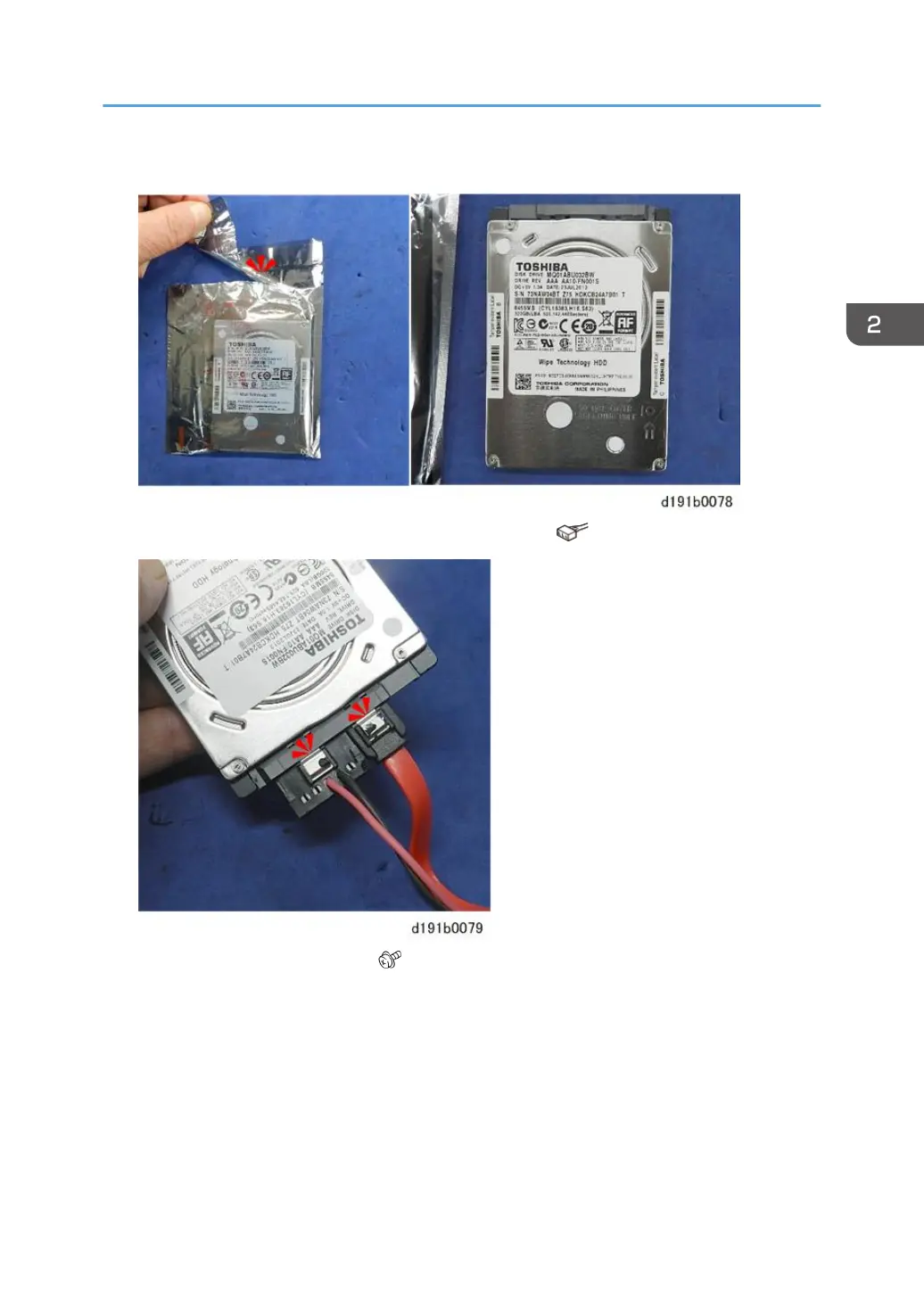

6. Remove the enhanced security HDD from its protective pack.

7. Connect the two cables to the enhanced security HDD. ( × 2)

8. Fasten the HDD to the bracket. ( × 4)

9. Install the HDD bracket in the controller box.

10. Reassemble the machine.

Enhanced Security HDD Option Type M12 (D3A6-02)

385
