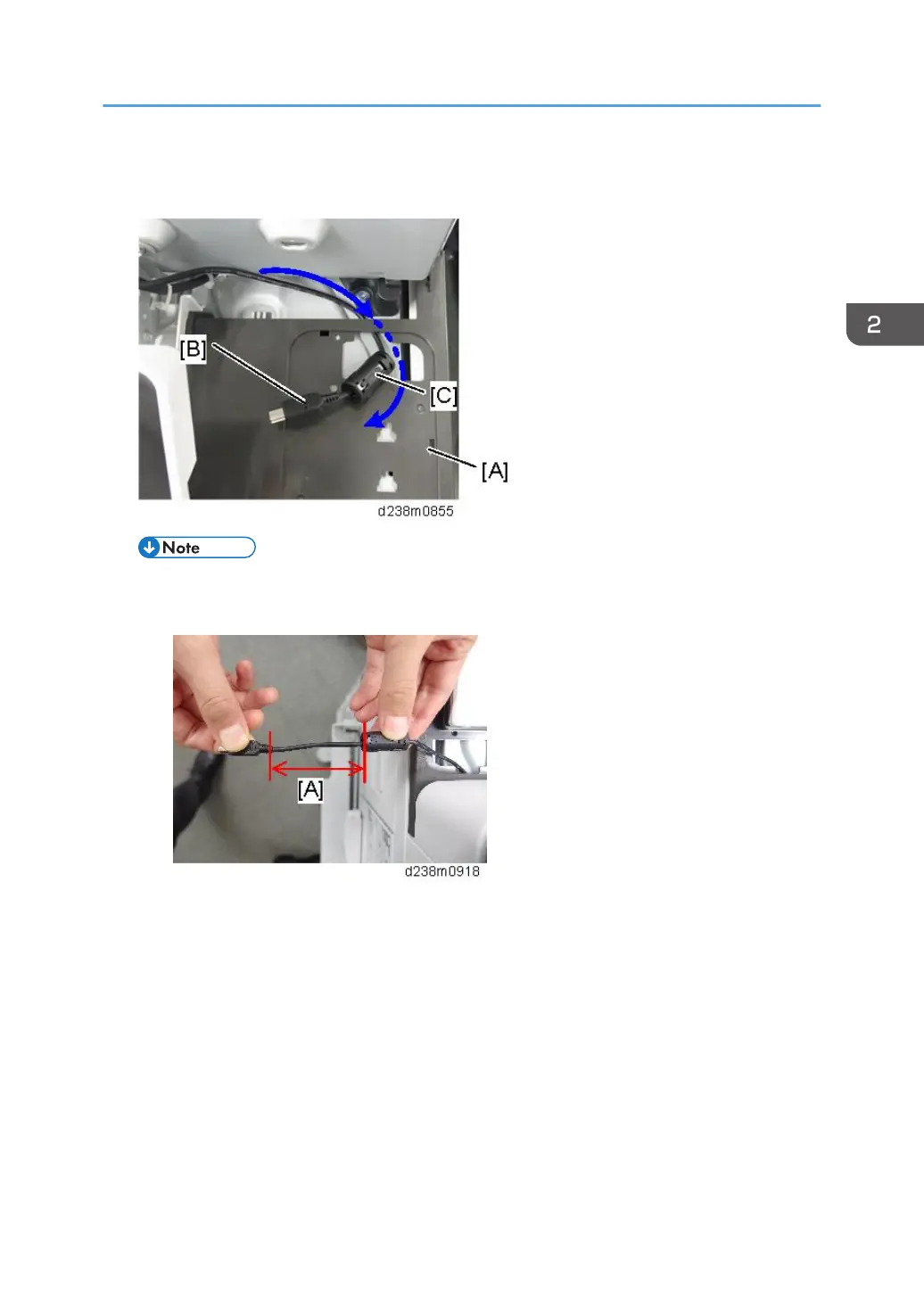

8. Thread the USB cable [B] through the notch in the corner cover [A] and attach the ferrite
core [C].
• Attach the ferrite core 6 cm [A] away from the end of the cable.
• By doing so, it becomes easier to put the ferrite core inside the reader cover in step 12.
9. Reattach the proximity sensor cover to the machine.
