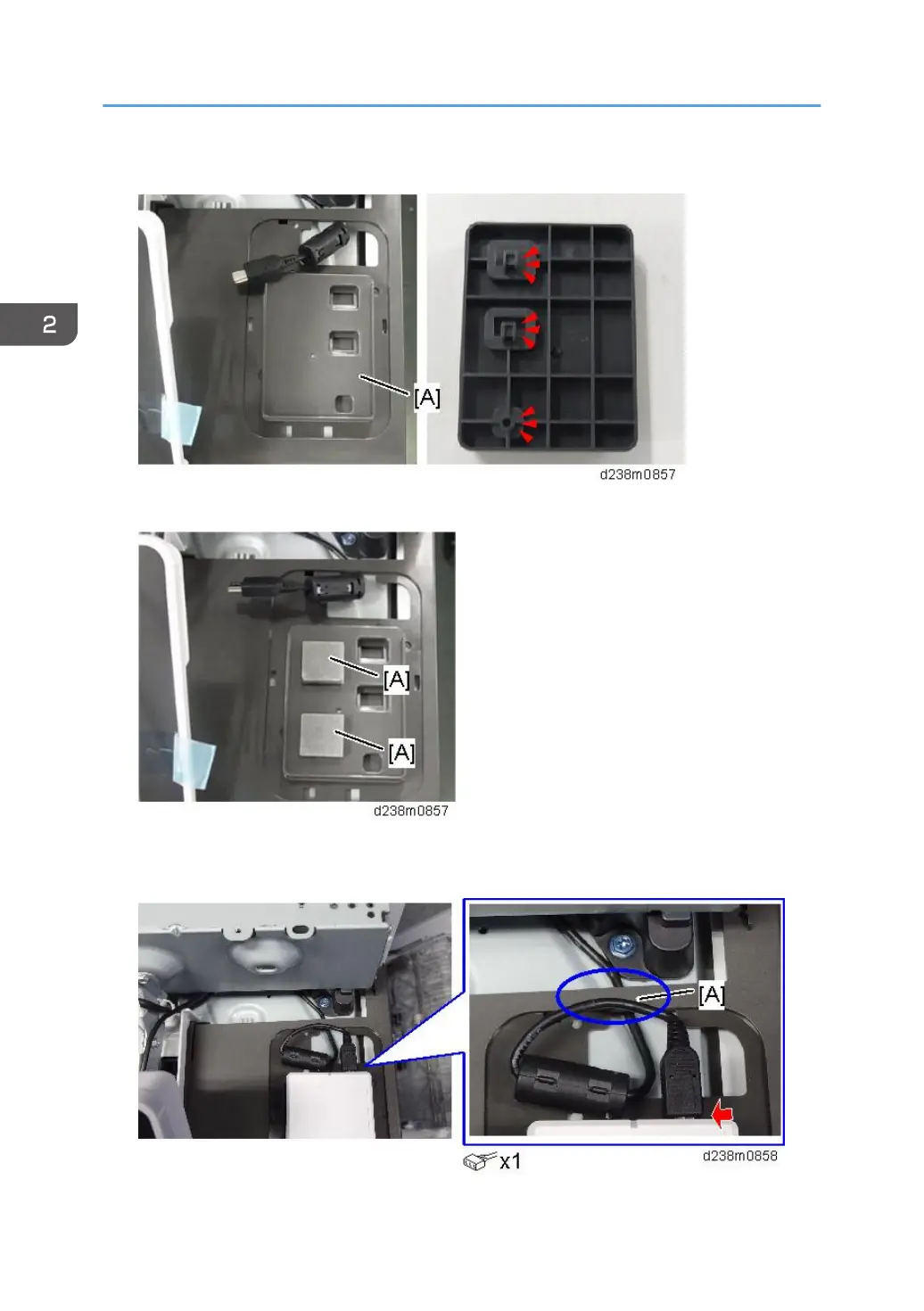

10. Attach the reader spacer [A].

11. Attach the sponge cushions [A] to the reader spacer.

12. Connect the card reader and interface cable.

Make sure to turn the USB cable as shown so that it threads through the notch in the spacer [A].

2. Installation

408
