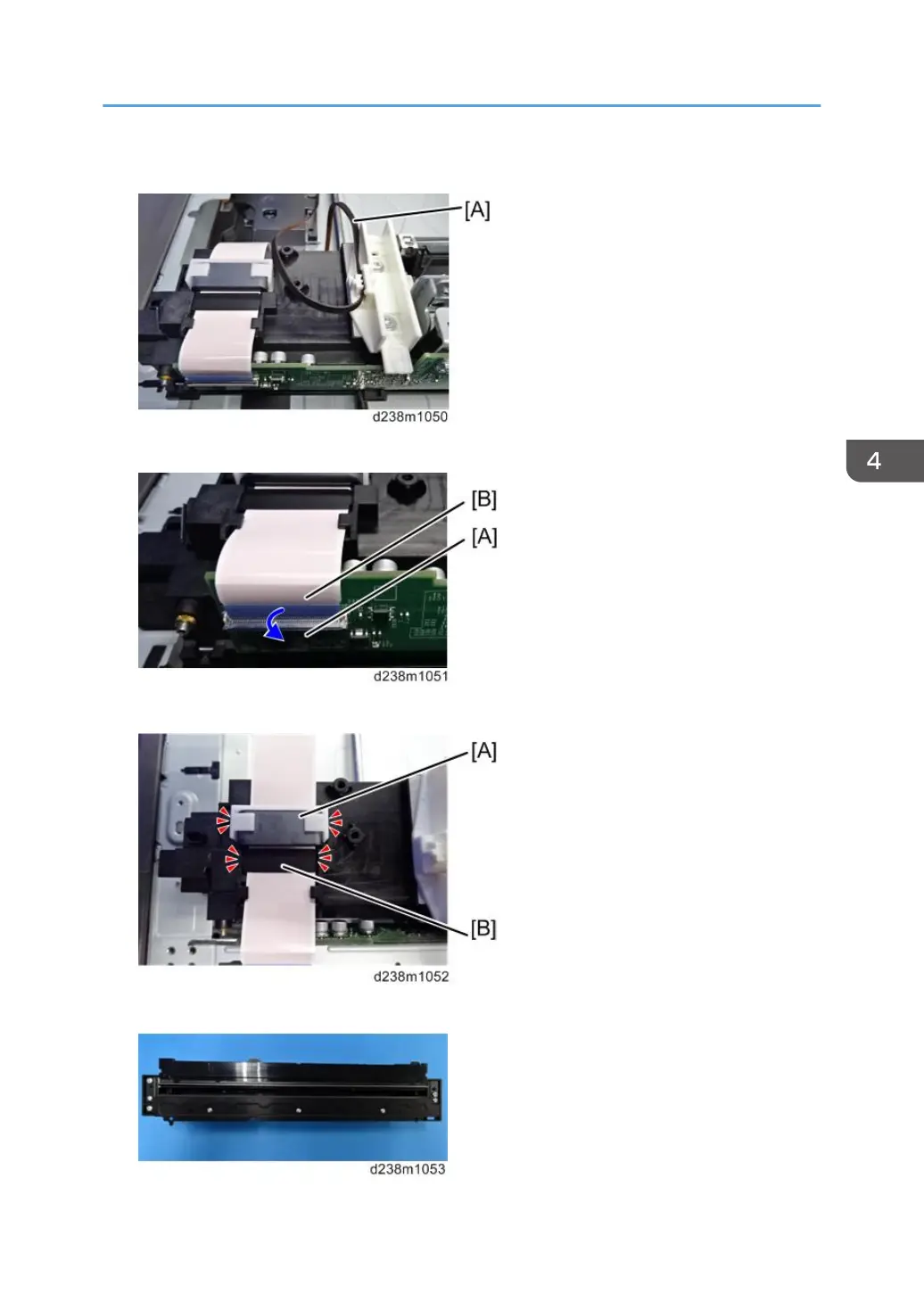

7. Belt [A]

8. Lower the lock lever [A] and disconnect the FFC [B].

9. Ferrite core [A], mylar [B] (Hook x 4)

10. Scanner carriage

Scanner Unit

527
