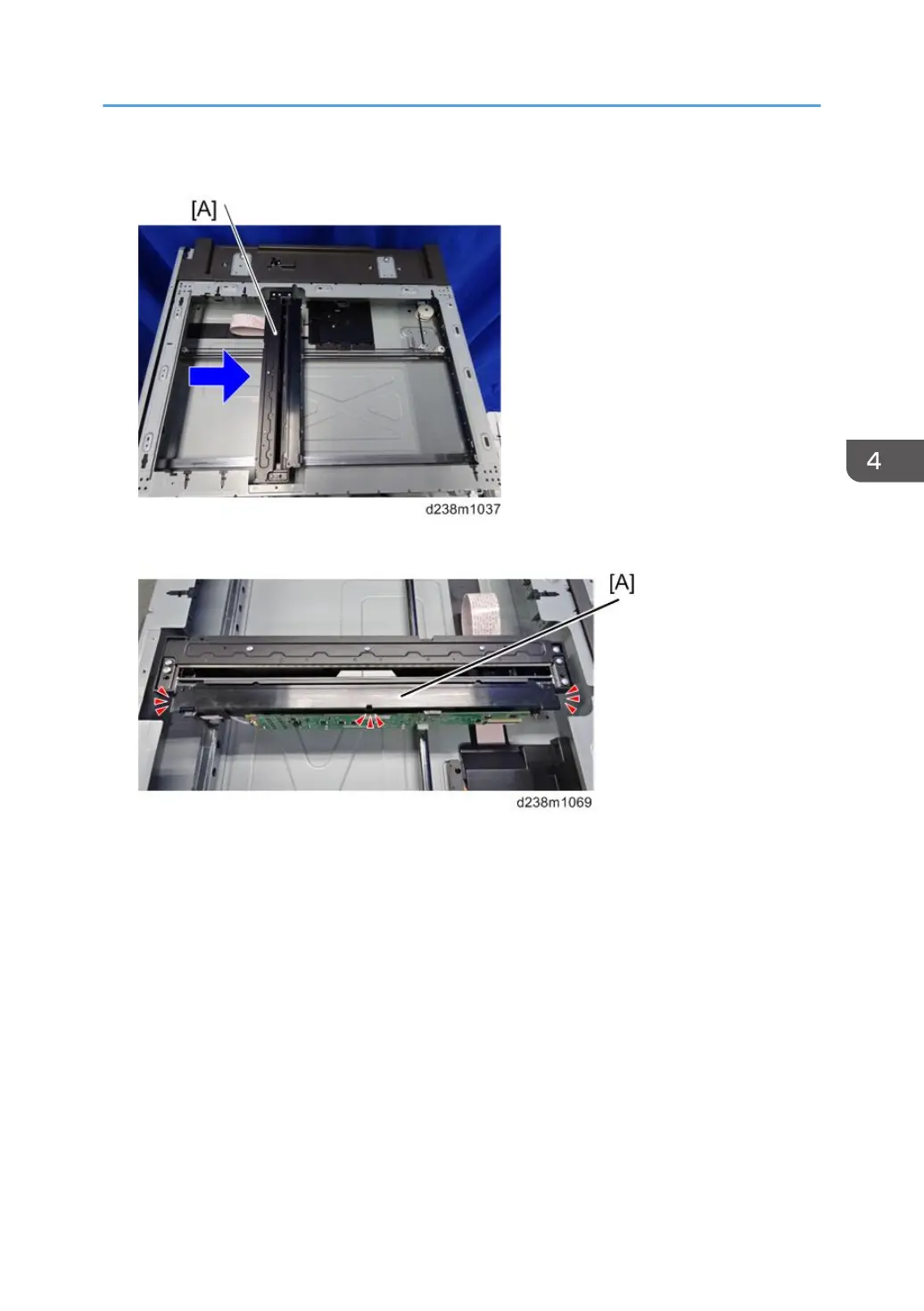

3. Move the scanner carriage [A] to the indicated position as shown.

4. Resin cover [A] (Hook x 3)

Scanner Unit
