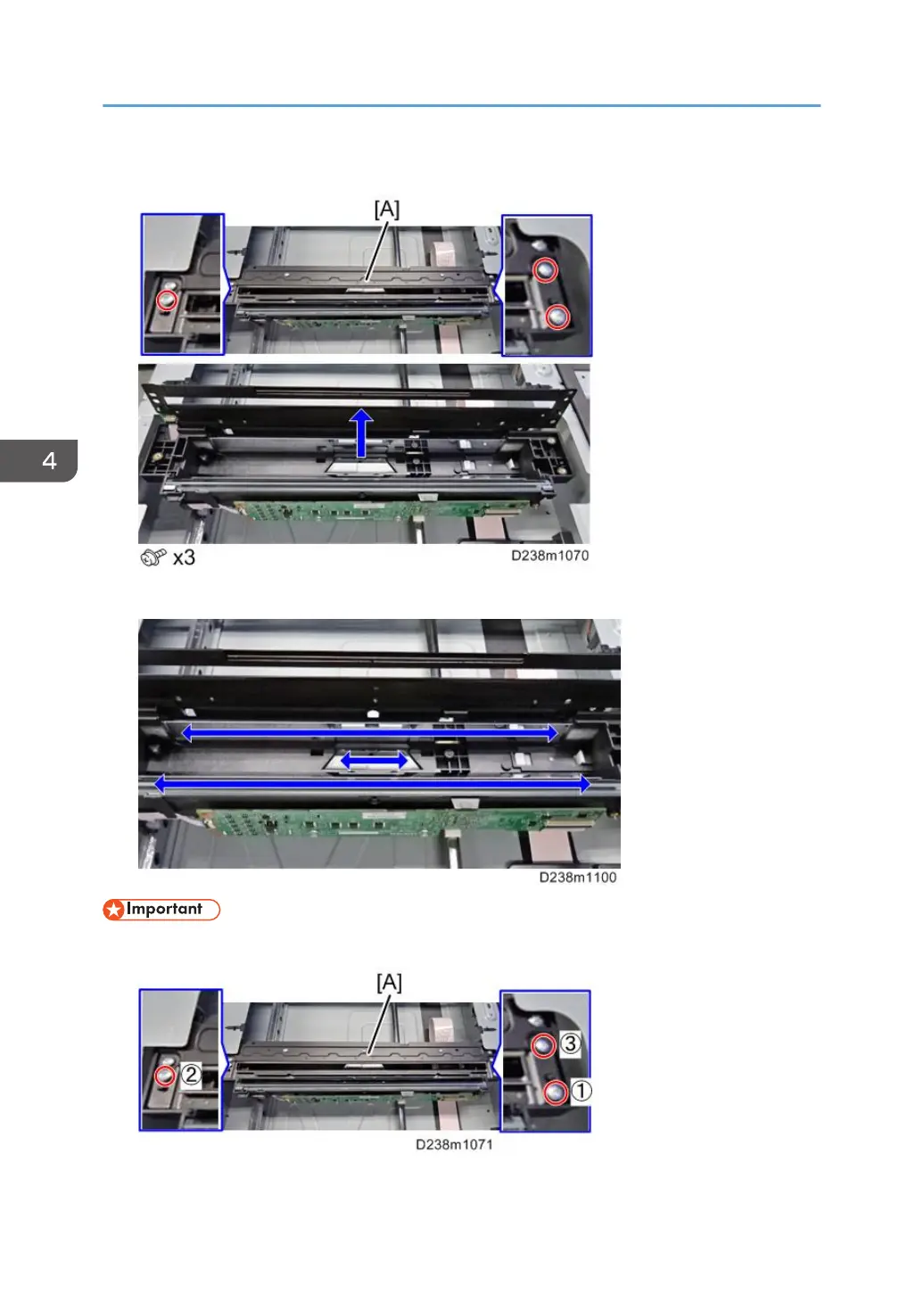

5. Open the metal cover [A]

6. Wipe clean the mirror with a dry cloth.

• When reattaching the metal cover [A], fasten the screws in the order of "1", "2", and "3".

4. Replacement and Adjustment

530
